Chainflex 3G-OTH-47598 — Technical Specifications

Name: Chainflex 3G-OTH-47598 CHAINFLEX Measuring System Cable: (3) Shielded Twisted Pr 26 AWG (0.14)/(3) 26 AWG (0.14), Green (MPN CF11-032-D). Key specifications — Conductor Grouping: (3) Shielded Twisted Pair 26 AWG/(3) 26 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

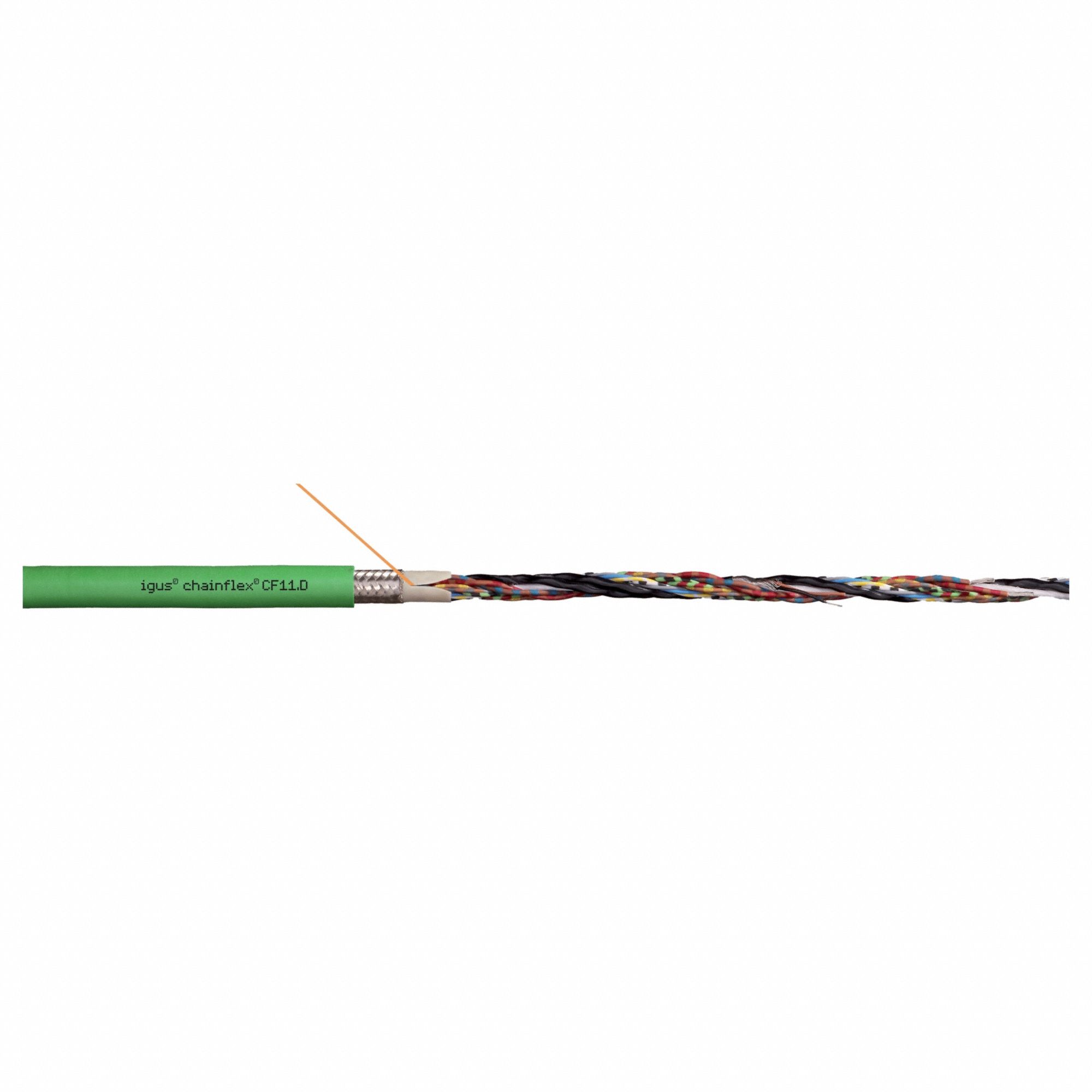

The CHAINFLEX Measuring System Cable (SKU 801KX9, MPN CF11-032-D) is a servo motor feedback cable featuring (3) shielded twisted pair 26 AWG and (3) 26 AWG conductors. It has a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible applications, and is sold by the foot. This cable does not include a ground conductor.

View Product & Quote

Technical Specifications

Parameter	Value
Type	(0.14)/(3) 26 AWG (0.14), Green
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(3) Shielded Twisted Pair 26 AWG/(3) 26 AWG
Manufacturer Part Number	CF11-032-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
