Chainflex 3G-OTH-48592 — Technical Specifications

Name: Chainflex 3G-OTH-48592 CHAINFLEX Measuring System Cable: (2) 20 AWG (0.50)/(2) Pr 24 AWG (0.25), Green, TPR Jacket (MPN CF11-018-D). Key specifications — Conductor Grouping: (2) 20 AWG/(2) Pair 24 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

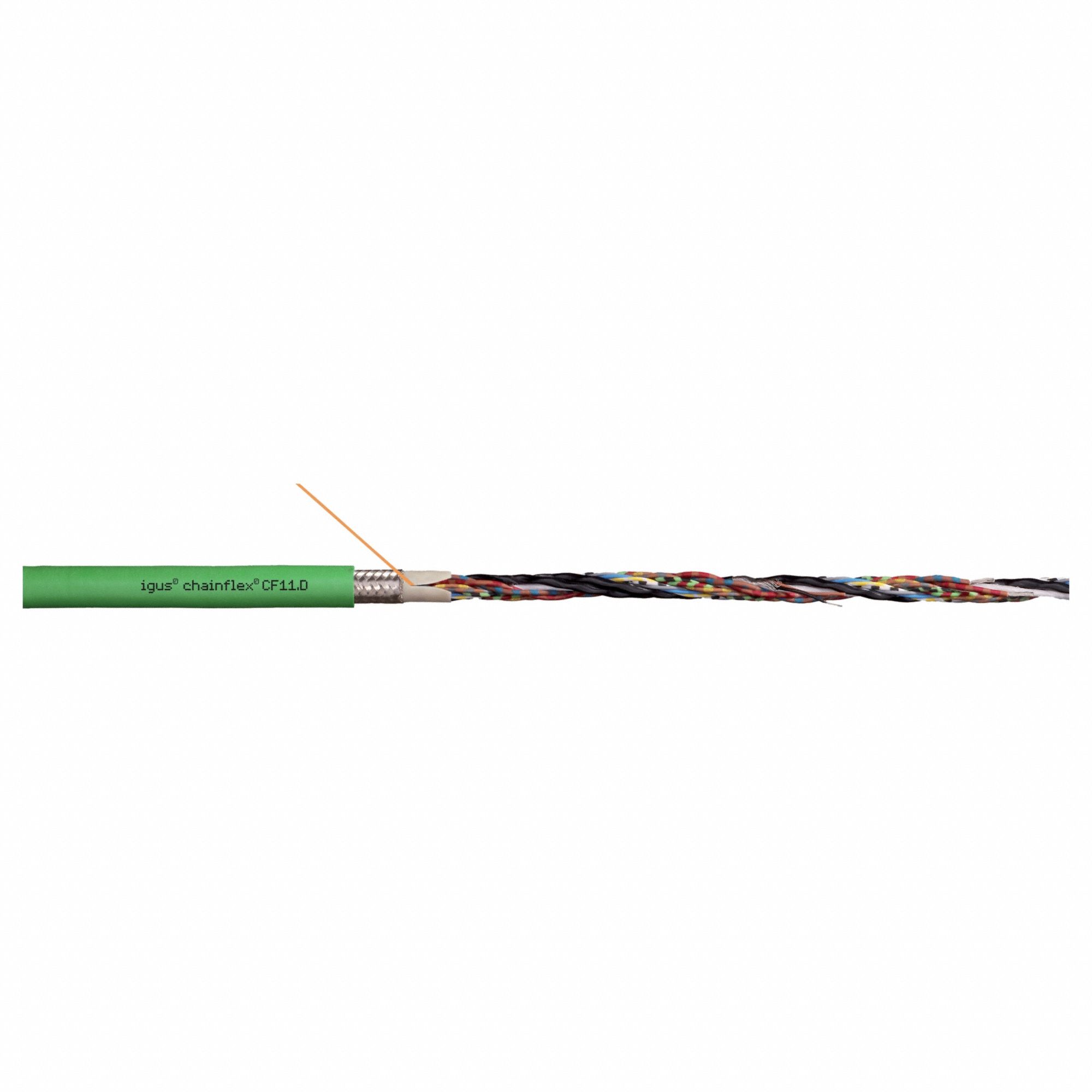

The CHAINFLEX Measuring System Cable (MPN CF11-018-D) is a servo motor feedback cable with a conductor grouping of (2) 20 AWG/(2) Pair 24 AWG, a green TPR jacket, and no included ground. It is sold by the foot and has a minimum bend radius factor of 4 x OD for fixed installations and 6 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Green, TPR Jacket
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(2) 20 AWG/(2) Pair 24 AWG
Manufacturer Part Number	CF11-018-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
