Chainflex 3G-OTH-47882 — Technical Specifications

Name: Chainflex 3G-OTH-47882 CHAINFLEX Measuring System Cable: (4) Shielded Twisted Pr 24 AWG (0.25)/(2) 20 AWG (0.50), Green (MPN CF11-014-D). Key specifications — Conductor Grouping: (4) Shielded Twisted Pair 24 AWG/(2) 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

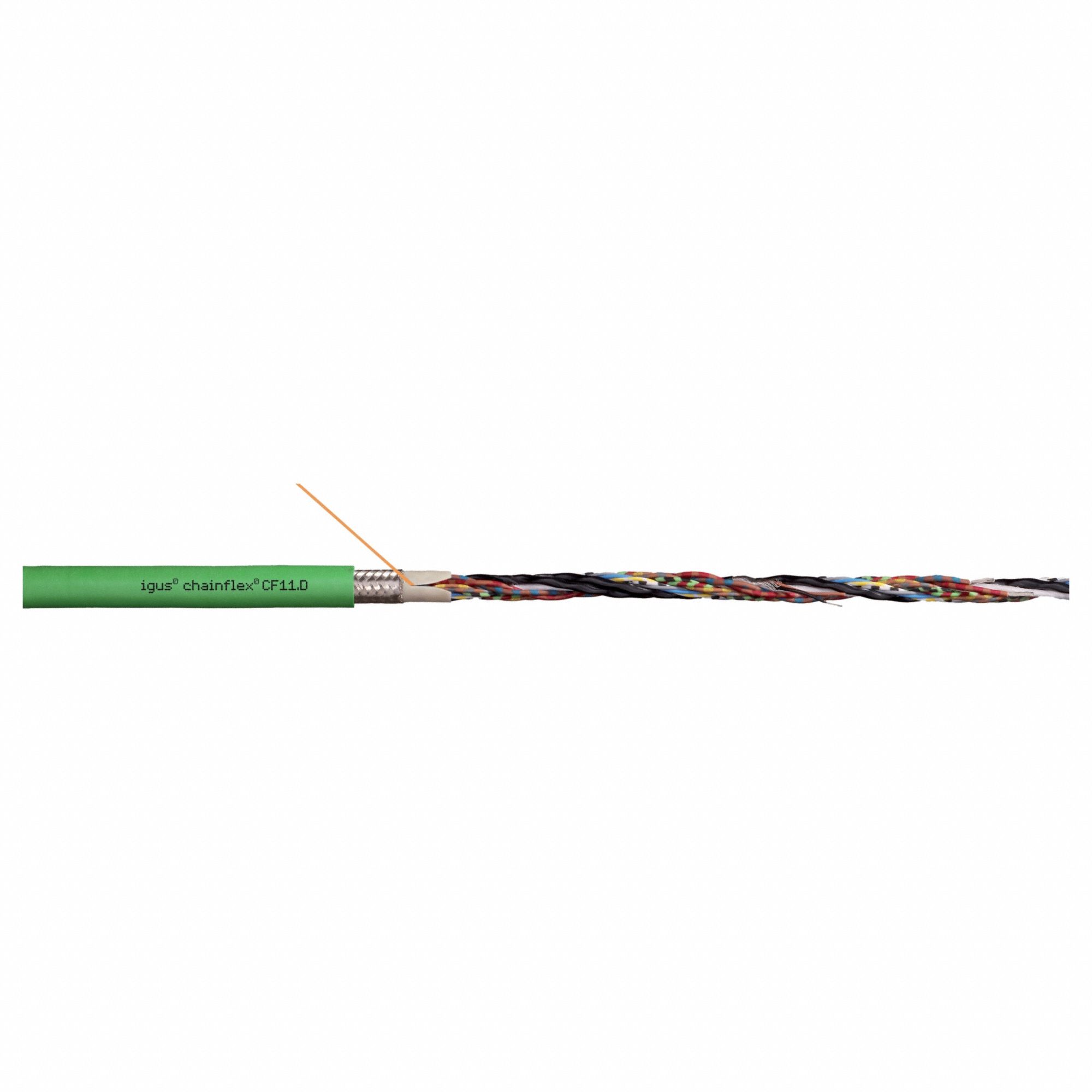

The CHAINFLEX Measuring System Cable (SKU 801KV7) is a servo motor feedback cable featuring (4) shielded twisted pair 24 AWG and (2) 20 AWG conductors, without an included ground. It is ordered by the foot and has a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible use.

View Product & Quote

Technical Specifications

Parameter	Value
Type	(0.25)/(2) 20 AWG (0.50), Green
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(4) Shielded Twisted Pair 24 AWG/(2) 20 AWG
Manufacturer Part Number	CF11-014-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
