Chainflex 3G-OTH-48908 — Technical Specifications

Name: Chainflex 3G-OTH-48908 CHAINFLEX Measuring System Cable: (4) Pr 24 AWG (0.25)/(2) 17 AWG (1.0), Green, TPR Jacket (MPN CF11-010-D). Key specifications — Conductor Grouping: (4) Pair 24 AWG/(2) 17 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

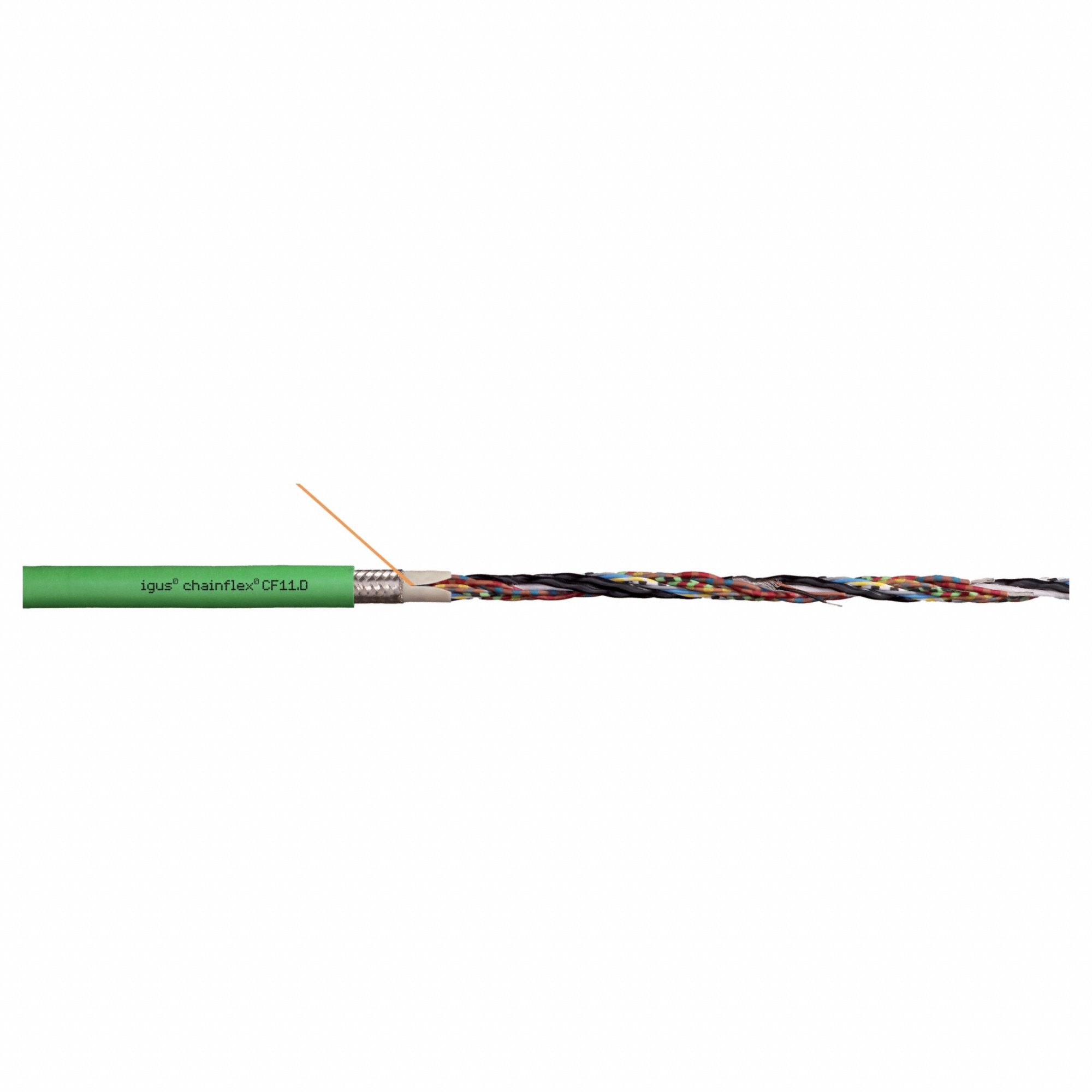

The CHAINFLEX Measuring System Cable (MPN CF11-010-D) is a servo motor feedback cable with a conductor grouping of (4) Pair 24 AWG/(2) 17 AWG, a green TPR jacket, and no included ground. It is ordered by the foot and has a minimum bend radius factor of 4 x OD for fixed installations and 6 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Green, TPR Jacket
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(4) Pair 24 AWG/(2) 17 AWG
Manufacturer Part Number	CF11-010-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
