Chainflex 3G-OTH-48885 — Technical Specifications

Name: Chainflex 3G-OTH-48885 CHAINFLEX Measuring System Cable: (2) Pr 22 AWG (0.34), Green, TPR Jacket, 50 V Volt (MPN CF11-007-D). Key specifications — Conductor Grouping: (2) Pair 22 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

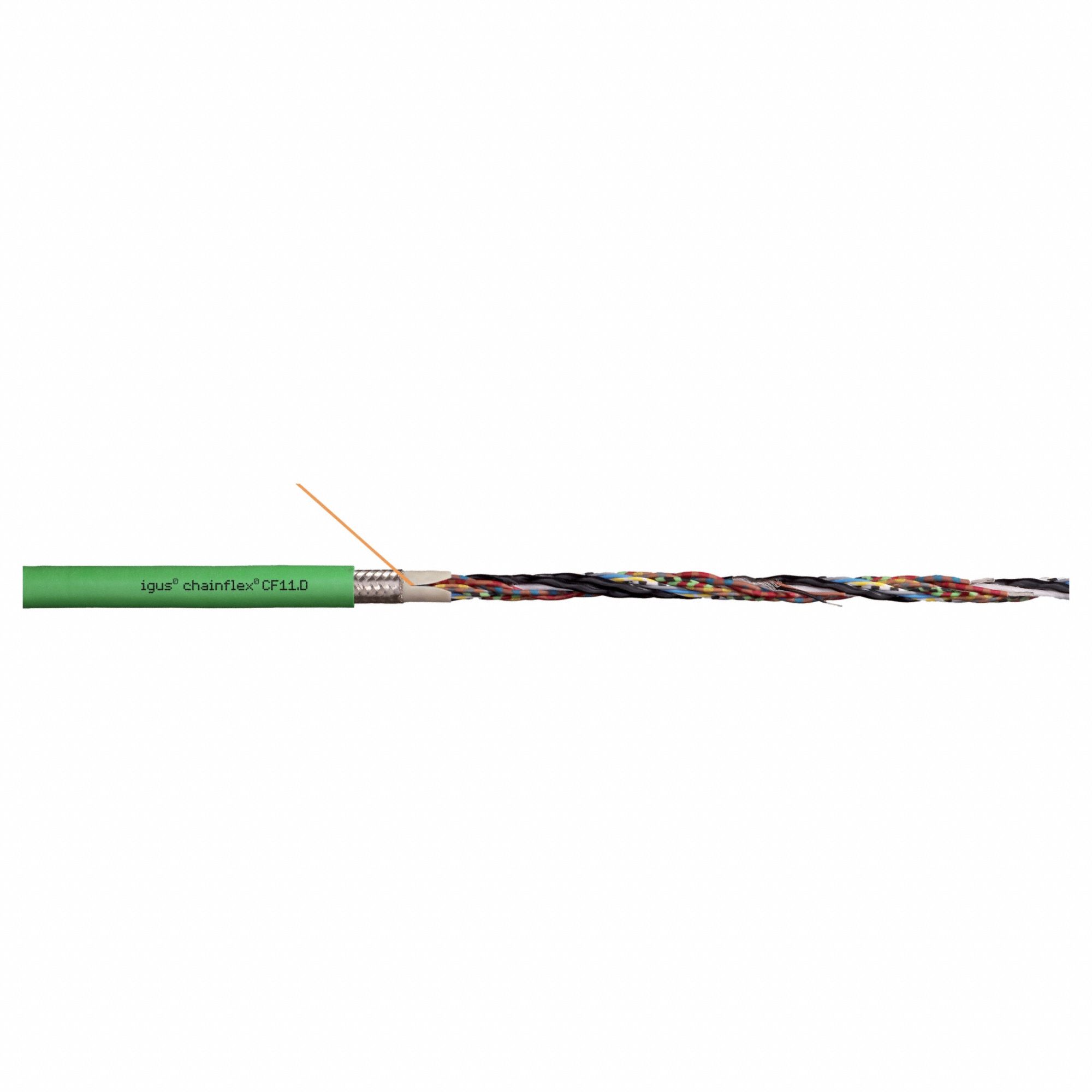

The CHAINFLEX Measuring System Cable (MPN CF11-007-D) is a servo motor feedback cable with (2) pair 22 AWG conductors, a green TPR jacket, and a 50 V voltage rating. It is ordered by the foot, includes no ground, and has a minimum bend radius factor of 4 x OD for fixed installations and 6 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Green, TPR Jacket
Volt	50 V
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(2) Pair 22 AWG
Manufacturer Part Number	CF11-007-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
