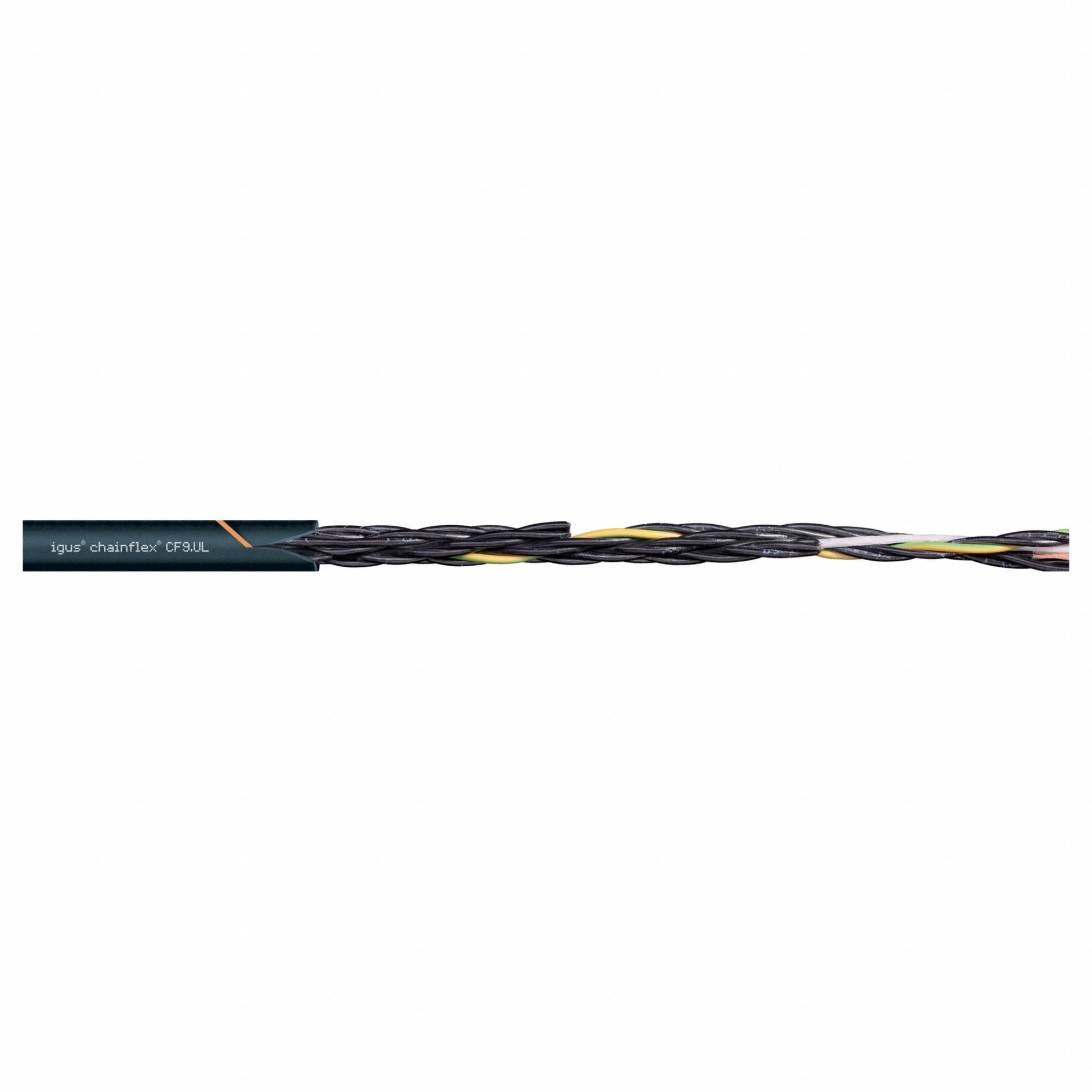

Chainflex 3G-OTH-49271 — Technical Specifications

Name: Chainflex 3G-OTH-49271 CHAINFLEX Control Cable: 17 AWG, 18 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF9-UL-10-18). Key specifications — Conductor Material: Copper; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: VDMA 24568 with Plantocut 8 S-MB by DEA; Product Type: Control Cable.
Brand: Chainflex

The CHAINFLEX Control Cable: 17 AWG is a continuous flexing control cable from the CF9-UL series, featuring 18 conductors of copper with a TPR jacket rated at 1,000 V. It includes a ground conductor and is UV/sunlight resistant, with minimum bend radius factors of 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications. This cable complies with VDMA 24568 using Plantocut 8 S-MB by DEA.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Standards	VDMA 24568 with Plantocut 8 S-MB by DEA
Conductors	18
Cable Series	CF9-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Manufacturer Part Number	CF9-UL-10-18
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
