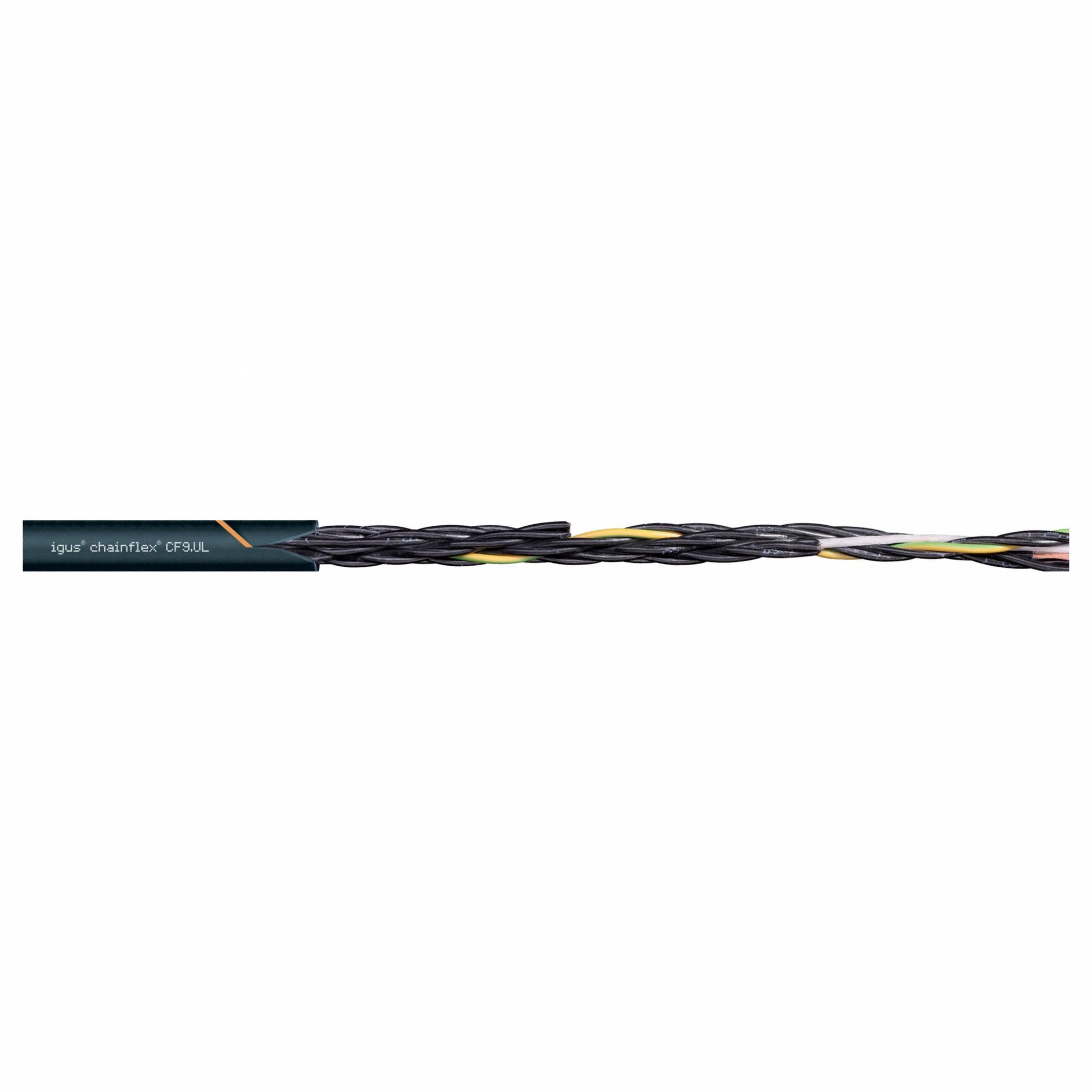

Chainflex 3G-OTH-54213 — Technical Specifications

Name: Chainflex 3G-OTH-54213 CHAINFLEX Control Cable: 20 AWG, 3 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF9-UL-05-03). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Flame Retardant; Standards: CEI 20-35.
Brand: Chainflex

The CHAINFLEX Control Cable: 20 AWG is a continuous flexing control cable from the Chainflex CF9-UL series, featuring three copper conductors with a TPR jacket rated at 1,000 V. It meets CEI 20-35 standards and is flame retardant, with minimum bend radius factors of 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CEI 20-35
Cable Series	CF9-UL
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF9-UL-05-03
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
