Chainflex 3G-OTH-53723 — Technical Specifications

Name: Chainflex 3G-OTH-53723 CHAINFLEX Control Cable: 24 AWG, 2 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-02-02). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: FT-1.
Brand: Chainflex

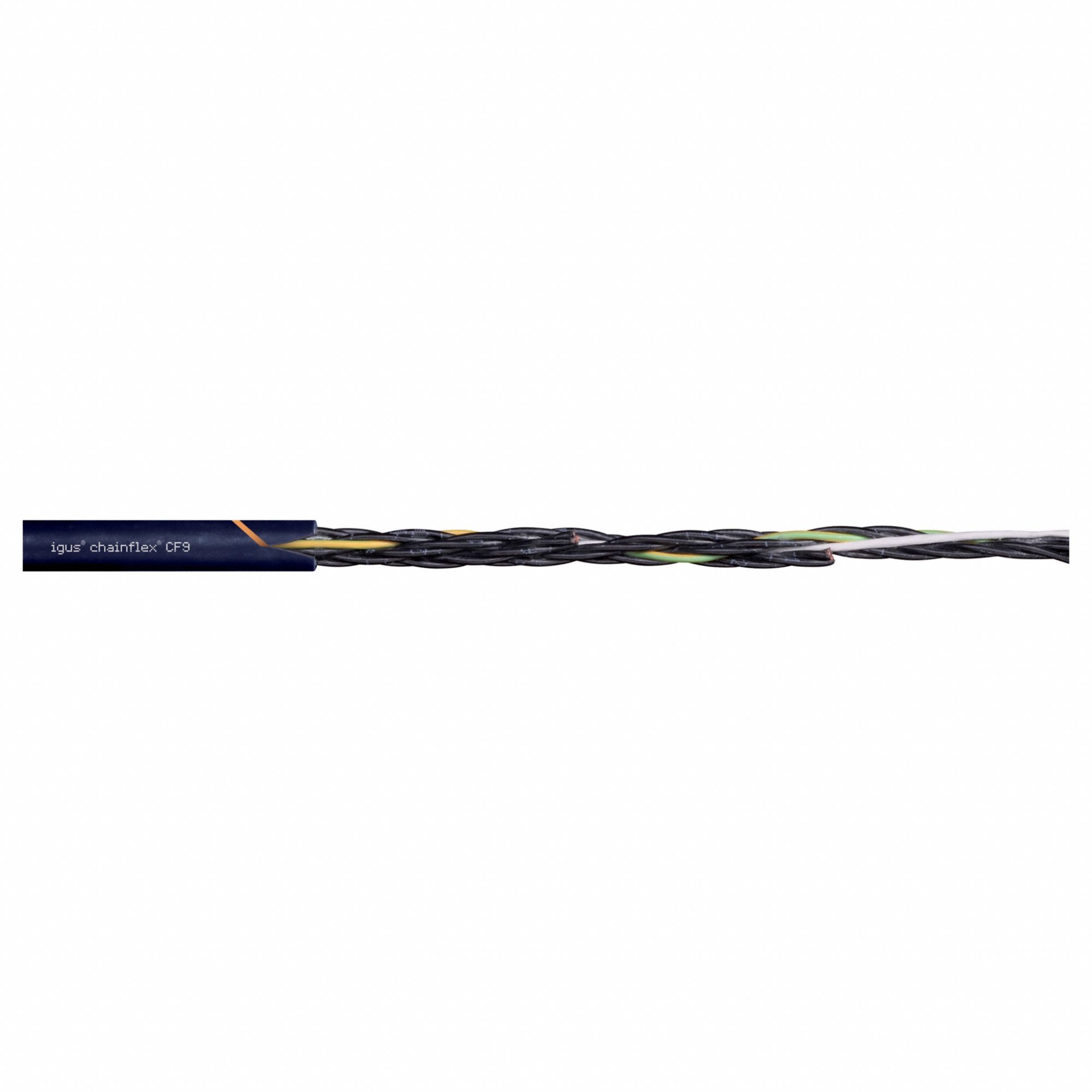

The CHAINFLEX Control Cable: 24 AWG (SKU 801KF4, MPN CF9-02-02) is a continuous flexing control cable from the Chainflex series. It features 2 conductors of 24 AWG copper with a TPR jacket, rated 300 V, and is oil and grease resistant. The cable meets FT-1 standards and offers minimum bend radius factors of 3 x OD for fixed installation, 4 x OD for flexible use, and 5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-1
Cable Series	CF9
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF9-02-02
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
