Chainflex 3G-OTH-50229 — Technical Specifications

Name: Chainflex 3G-OTH-50229 CHAINFLEX Control Cable: 14 AWG, 25 Conductors, Order by the Foot, PUR Jacket, 600 V (MPN CF890-25-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: VW-1.
Brand: Chainflex

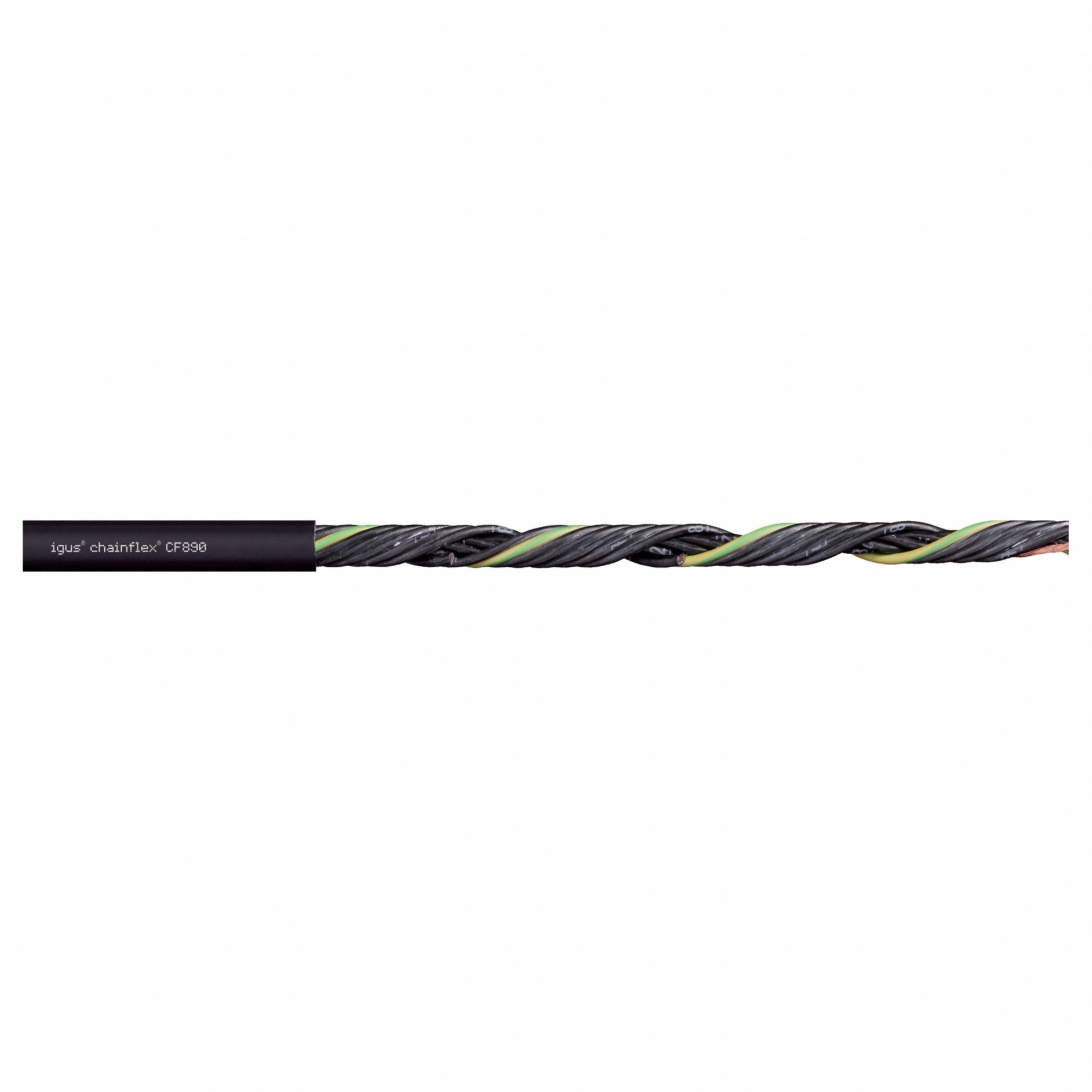

The CHAINFLEX Control Cable: 14 AWG is a continuous flexing control cable from the Chainflex CF890 series, featuring 25 conductors of 14 AWG copper with a single conductor configuration and a PUR jacket rated at 600 V. It includes a ground conductor, is UV/sunlight resistant, and meets VW-1 standards. Minimum bend radius factors are 7 x OD for fixed installation, 10 x OD for flexible use, and 12.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PUR Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	VW-1
Conductors	25
Cable Series	CF890
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF890-25-25
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
