Chainflex 3G-OTH-49912 — Technical Specifications

Name: Chainflex 3G-OTH-49912 CHAINFLEX Control Cable: 14 AWG, 5 Conductors, Order by the Foot, PUR Jacket, 600 V (MPN CF890-25-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CE 2014/35/EU.
Brand: Chainflex

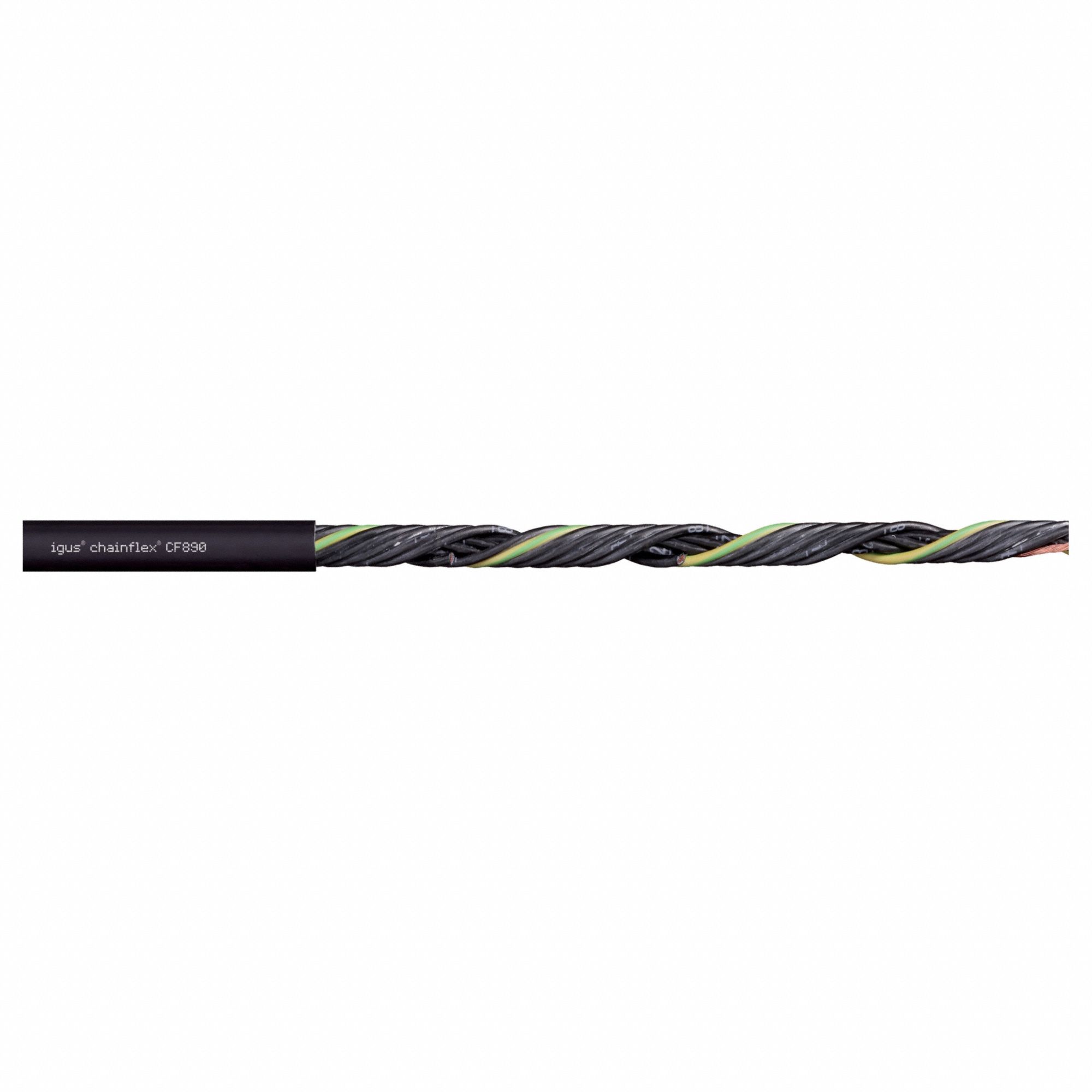

The CHAINFLEX Control Cable: 14 AWG is a continuous flexing control cable from the Chainflex CF890 series, featuring 5 conductors of single copper wire with a PUR jacket rated at 600 V. It includes a ground conductor and is oil and grease resistant, with minimum bend radius factors of 7 x OD for fixed installation, 10 x OD for flexible use, and 12.5 x OD for e-chain applications. This cable complies with CE 2014/35/EU standards and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PUR Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CE 2014/35/EU
Conductors	5
Cable Series	CF890
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF890-25-05
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
