Chainflex 3G-OTH-46069 — Technical Specifications

Name: Chainflex 3G-OTH-46069 CHAINFLEX Control Cable: 20 AWG, 5 Conductors, Order by the Foot, PUR Jacket, 600 V (MPN CF890-05-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: FT-1.
Brand: Chainflex

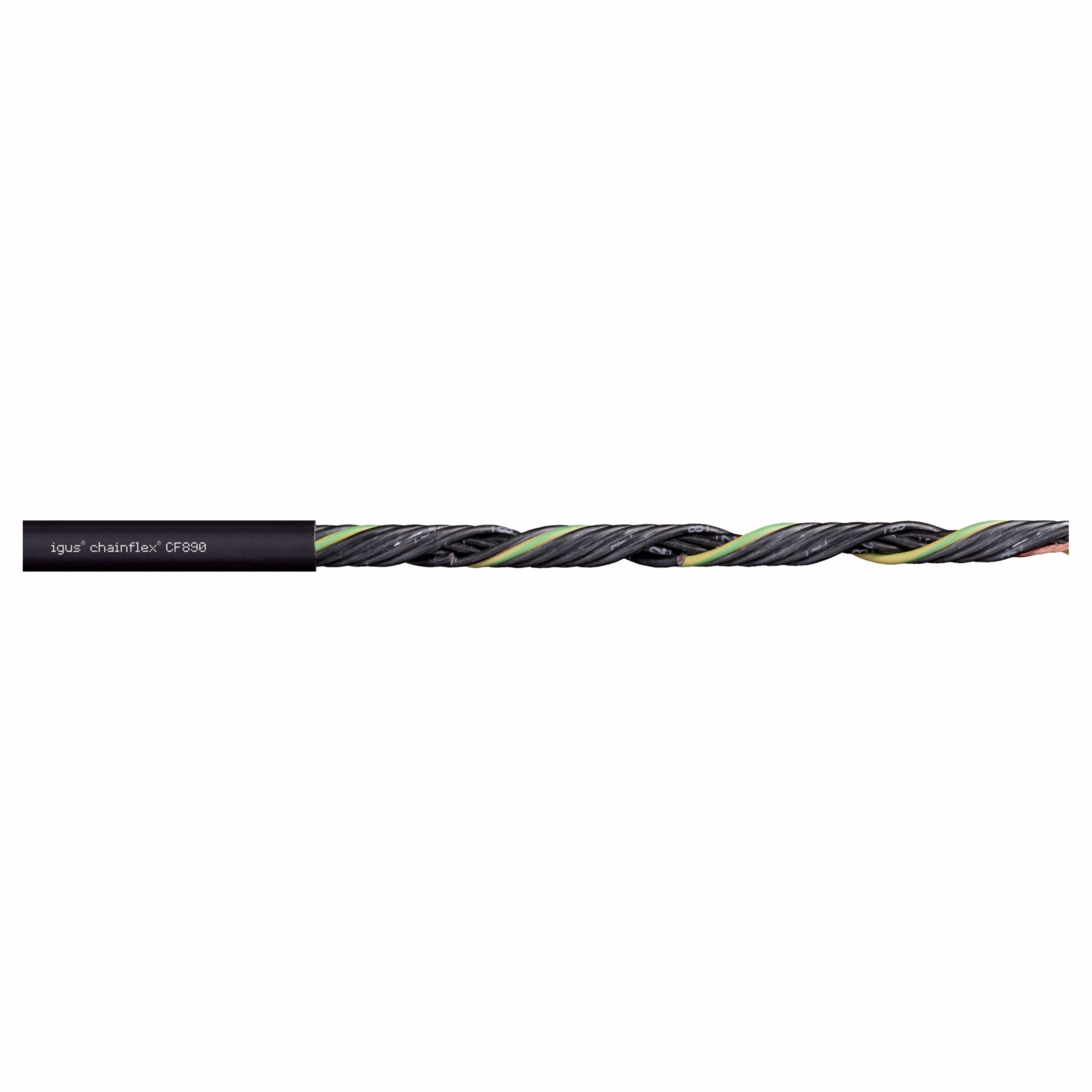

The CHAINFLEX Control Cable: 20 AWG (SKU 801K68) is a continuous flexing control cable from the Chainflex series, model CF890-05-05, featuring 5 conductors of single copper wire with a PUR jacket rated at 600 V. It includes a ground conductor, is oil and grease resistant, and meets FT-1 standards. Minimum bend radius factors are 7 x OD for fixed installation, 10 x OD for flexible use, and 12.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PUR Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-1
Conductors	5
Cable Series	CF890
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF890-05-05
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
