Chainflex 3G-OTH-53058 — Technical Specifications

Name: Chainflex 3G-OTH-53058 CHAINFLEX Control Cable: 14 AWG, 12 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF881-25-12). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CEI 20-35.
Brand: Chainflex

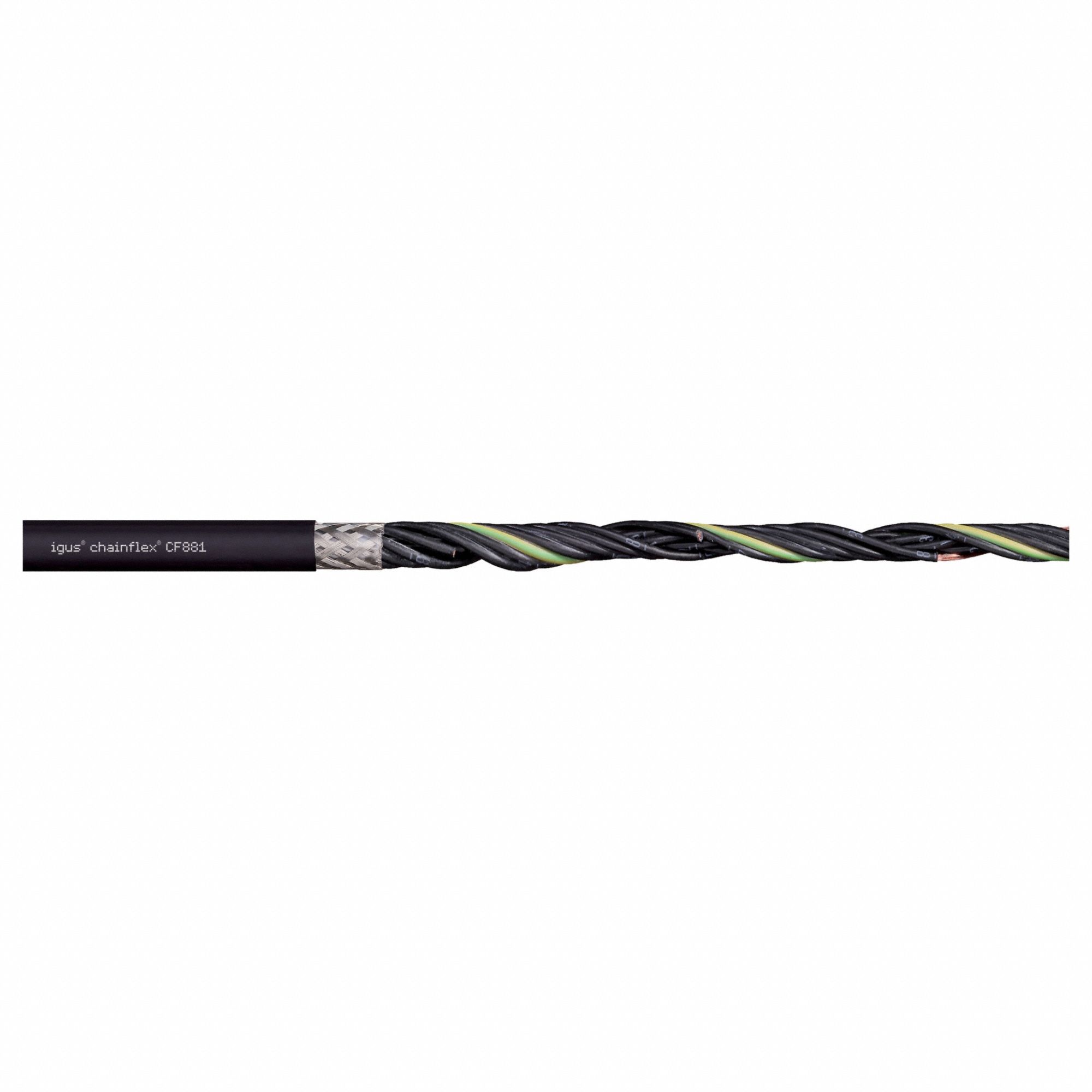

The CHAINFLEX Control Cable (14 AWG, 12 conductors, MPN CF881-25-12) is a continuous flexing control cable from the Chainflex series. It features a copper conductor, single conductor configuration, PVC jacket, 300 V rating, and includes a ground. The cable is oil and grease resistant, complies with CEI 20-35 standards, and has minimum bend radius factors of 7 x OD (fixed), 10 x OD (flexible), and 12.5 x OD (e-chain).

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CEI 20-35
Conductors	12
Cable Series	CF881
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF881-25-12
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
