Chainflex 3G-OTH-53901 — Technical Specifications

Name: Chainflex 3G-OTH-53901 CHAINFLEX Control Cable: 17 AWG, 12 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF881-10-12). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Flame Retardant; Standards: PV 3.10.7 Status 1992.
Brand: Chainflex

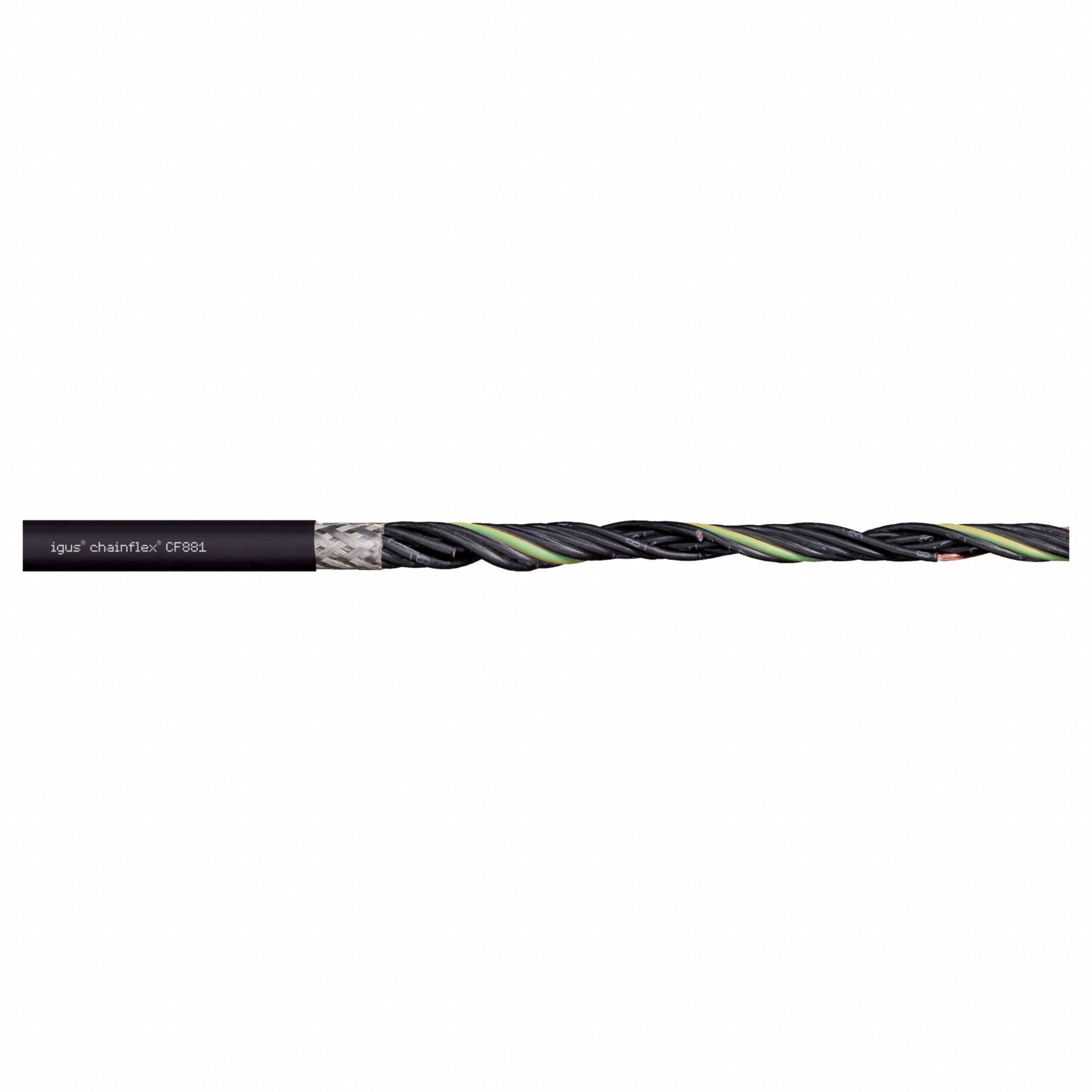

The CHAINFLEX Control Cable: 17 AWG (SKU 801K46, MPN CF881-10-12) is a continuous flexing control cable from the Chainflex series. It features 12 conductors of single copper wire with a PVC jacket, rated at 300 V, and includes a ground conductor. The cable is flame retardant and complies with PV 3.10.7 Status 1992, with minimum bend radius factors of 7 x OD for fixed installation, 10 x OD for flexible use, and 12.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	PV 3.10.7 Status 1992
Conductors	12
Cable Series	CF881
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF881-10-12
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
