Chainflex 3G-OTH-50881 — Technical Specifications

Name: Chainflex 3G-OTH-50881 CHAINFLEX Control Cable: 17 AWG, 3 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF881-10-03). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Flame Retardant; Standards: CEI 20-35.
Brand: Chainflex

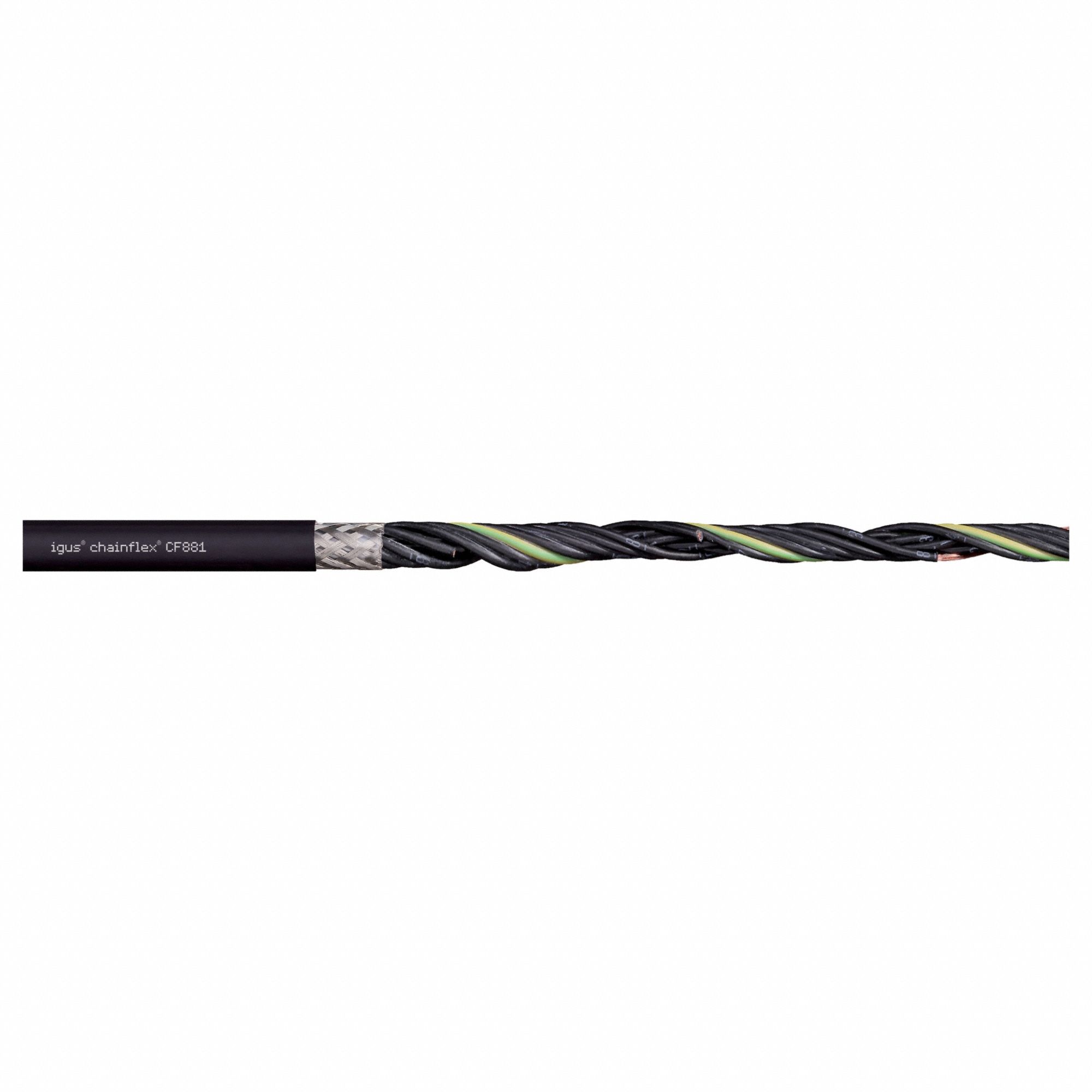

The CHAINFLEX Control Cable: 17 AWG (SKU 801K42, MPN CF881-10-03) is a continuous flexing control cable from the Chainflex CF881 series. This 3-conductor, single-conductor-configuration cable features a copper conductor, PVC jacket, 300 V rating, and includes a ground. It is flame retardant per CEI 20-35 standards, with minimum bend radius factors of 7 x OD for fixed, 10 x OD for flexible, and 12.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CEI 20-35
Conductors	3
Cable Series	CF881
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF881-10-03
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
