Chainflex 3G-OTH-50691 — Technical Specifications

Name: Chainflex 3G-OTH-50691 CHAINFLEX Control Cable: 20 AWG, 18 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF881-05-18). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: FT-1.
Brand: Chainflex

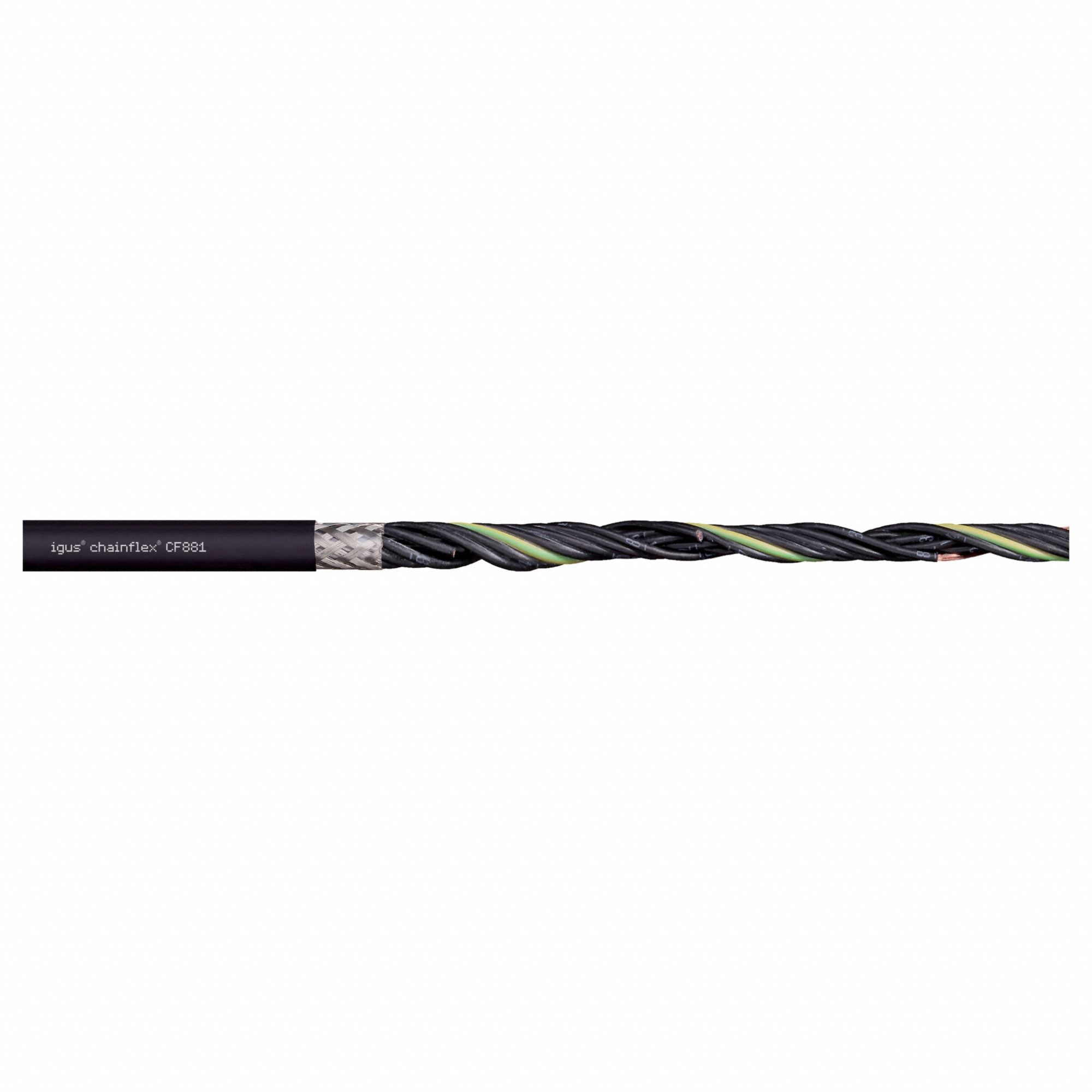

The CHAINFLEX Control Cable: 20 AWG (SKU 801K30, MPN CF881-05-18) is a continuous flexing control cable from the Chainflex series, featuring 18 conductors of single copper wire with a PVC jacket rated at 300 V. It includes a ground conductor and is oil and grease resistant, meeting FT-1 standards. Minimum bend radius factors are 7 x OD for fixed installation, 10 x OD for flexible use, and 12.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-1
Conductors	18
Cable Series	CF881
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF881-05-18
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
