Chainflex 3G-OTH-49315 — Technical Specifications

Name: Chainflex 3G-OTH-49315 CHAINFLEX Control Cable: 16 AWG, 2 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF880-15-02). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: PV 3.10.7 Status 1992.
Brand: Chainflex

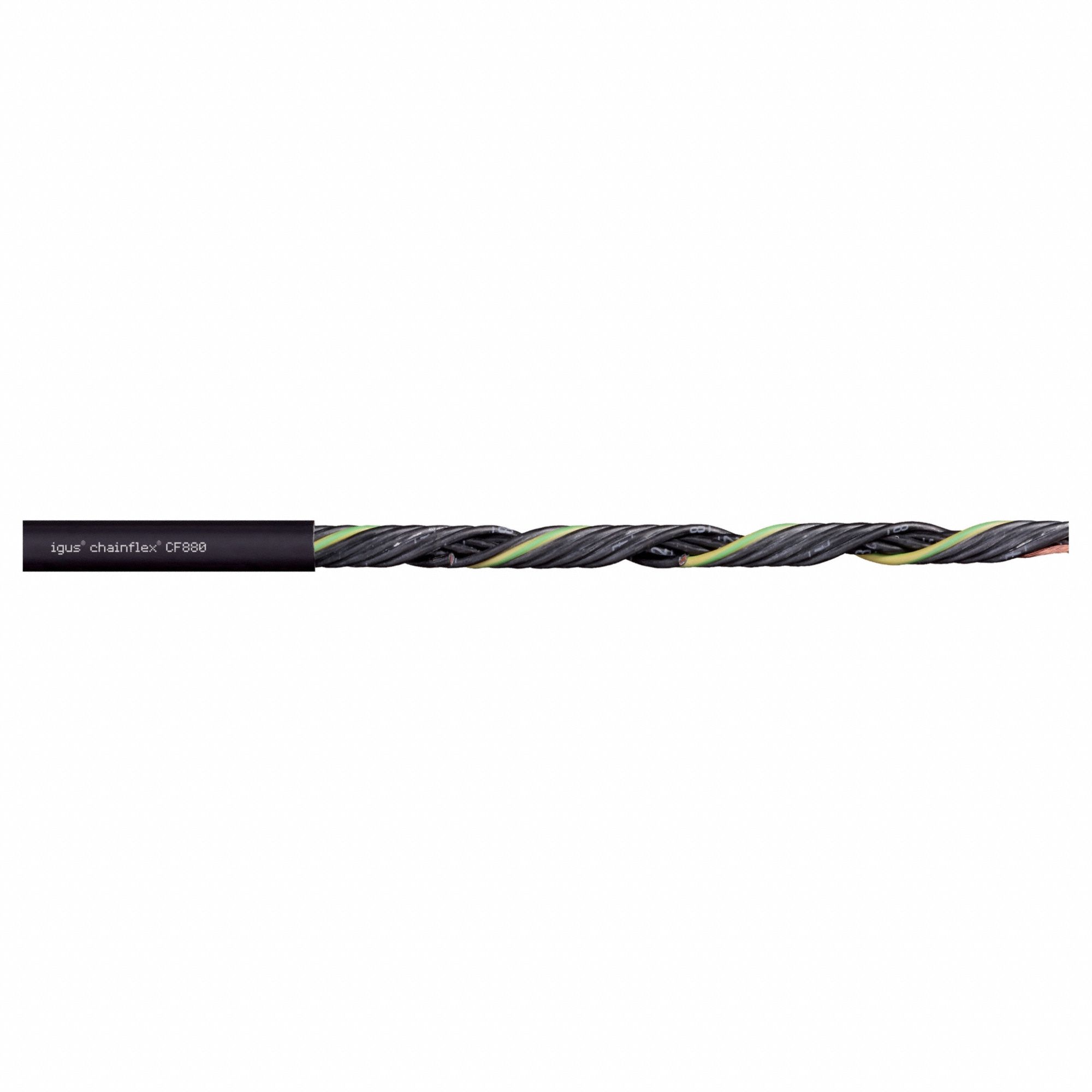

The CHAINFLEX Control Cable: 16 AWG (SKU 801K09, MPN CF880-15-02) is a continuous flexing control cable from the Chainflex series. It features 2 conductors of single copper wire, a PVC jacket, and a 300 V rating, with no ground conductor. The cable is oil and grease resistant and complies with PV 3.10.7 Status 1992, with minimum bend radius factors of 7 x OD for fixed, 10 x OD for flexible, and 12.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	PV 3.10.7 Status 1992
Conductors	2
Cable Series	CF880
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF880-15-02
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
