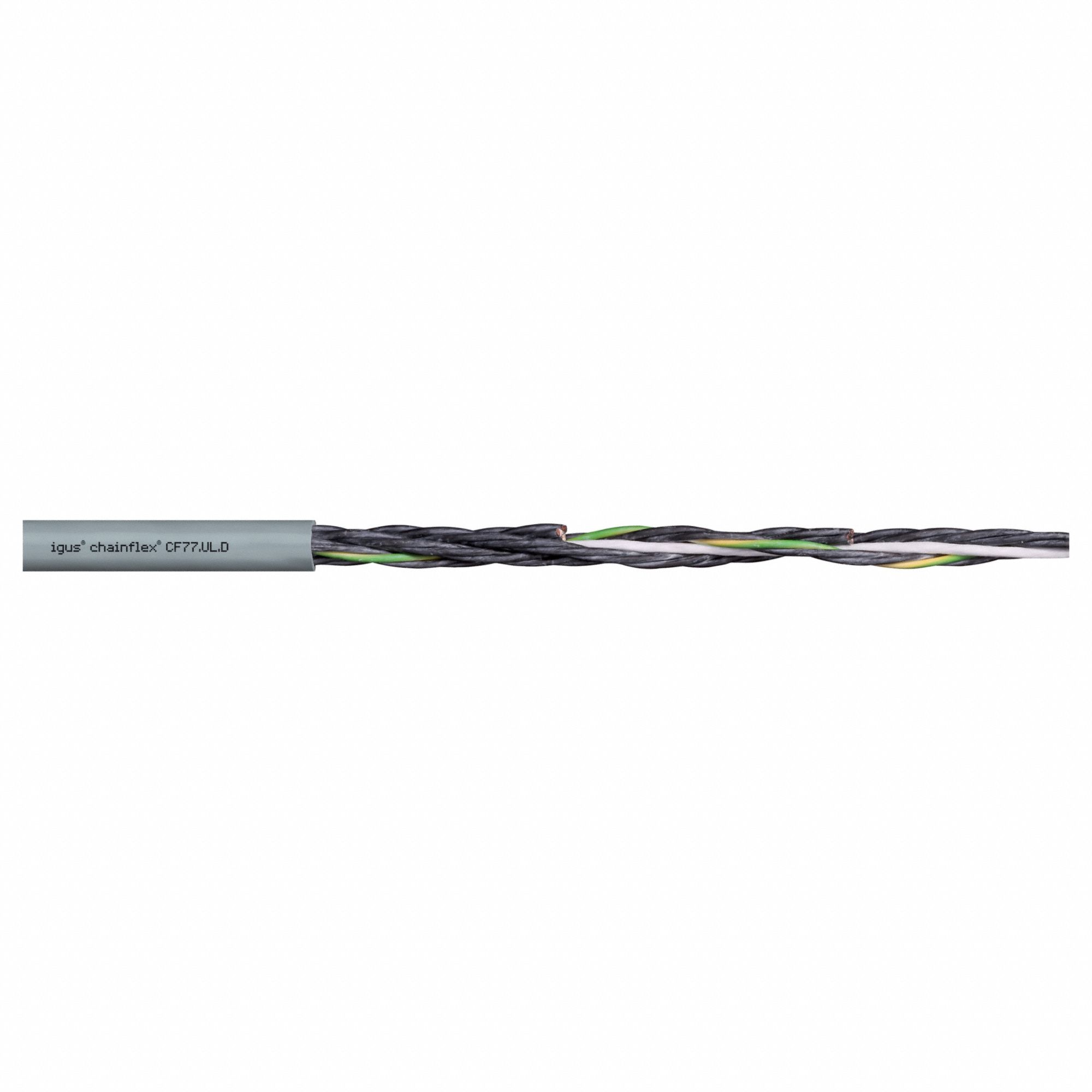

Chainflex 3G-OTH-51701 — Technical Specifications

Name: Chainflex 3G-OTH-51701 CHAINFLEX Control Cable: 24 AWG, 3 Conductors, Order by the Foot, PUR Jacket, 300 V (MPN CF77-UL0203INI). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: CEI 20-35.
Brand: Chainflex

The CHAINFLEX Control Cable: 24 AWG is a continuous flexing control cable from the Chainflex CF77-UL series, featuring a PUR jacket and 300 V rating. It has 3 conductors of single copper wire, is UV/sunlight resistant, and meets CEI 20-35 standards. Minimum bend radius factors are 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CEI 20-35
Cable Series	CF77-UL
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF77-UL0203INI
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
