Chainflex 3G-OTH-45658 — Technical Specifications

Name: Chainflex 3G-OTH-45658 CHAINFLEX Control Cable: 24 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF6-02-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CE 2014/35/EU.
Brand: Chainflex

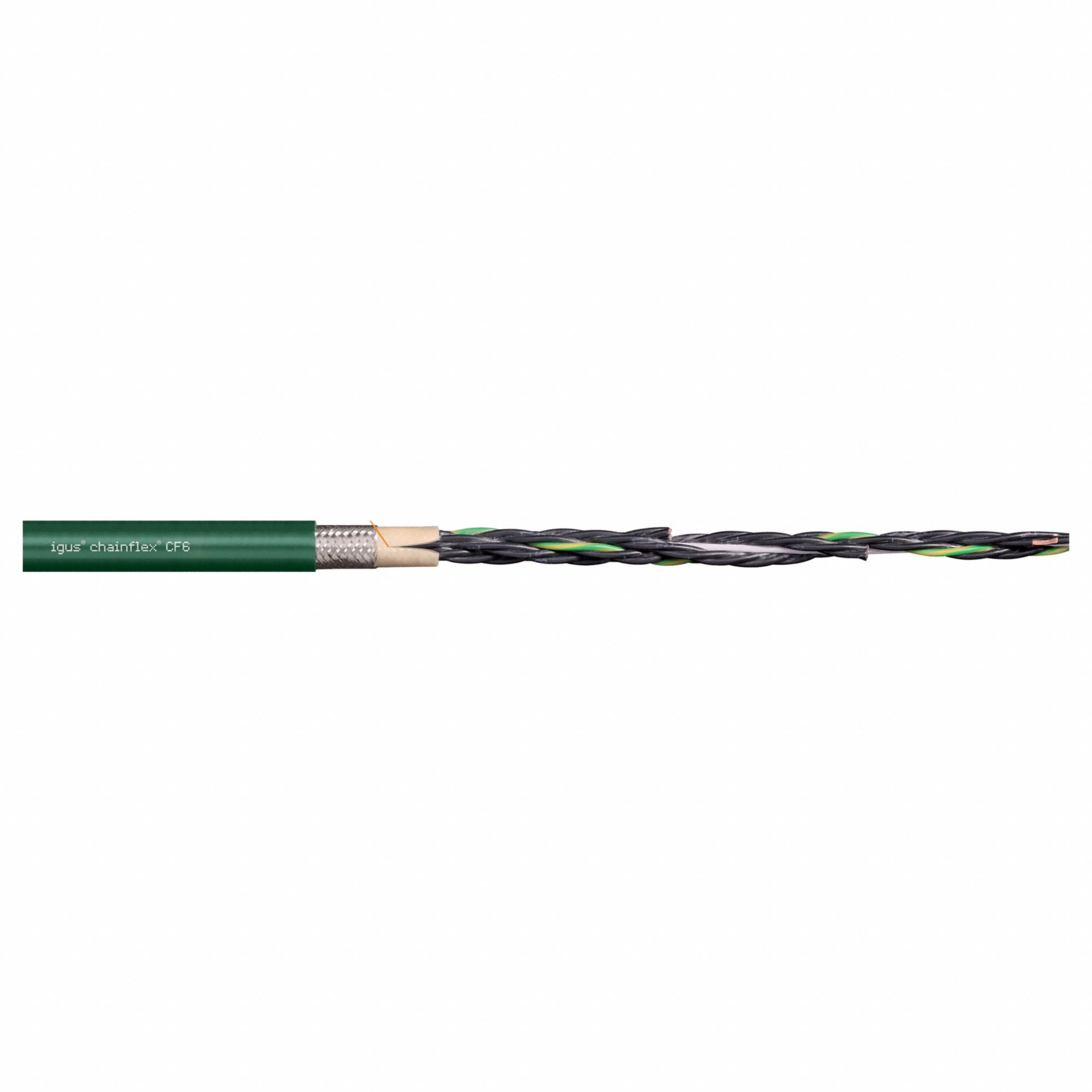

The CHAINFLEX Control Cable: 24 AWG is a continuous flexing control cable from the Chainflex CF6 series, featuring 4 conductors of single copper wire with a PVC jacket rated at 300 V. It is oil and grease resistant, CE 2014/35/EU certified, and does not include a ground conductor. Minimum bend radius factors are 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CE 2014/35/EU
Conductors	4
Cable Series	CF6
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF6-02-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
