Chainflex 3G-OTH-51246 — Technical Specifications

Name: Chainflex 3G-OTH-51246 CHAINFLEX Control Cable: 17 AWG, 7 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF140-10-07). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Flame Retardant; Standards: FT-2.
Brand: Chainflex

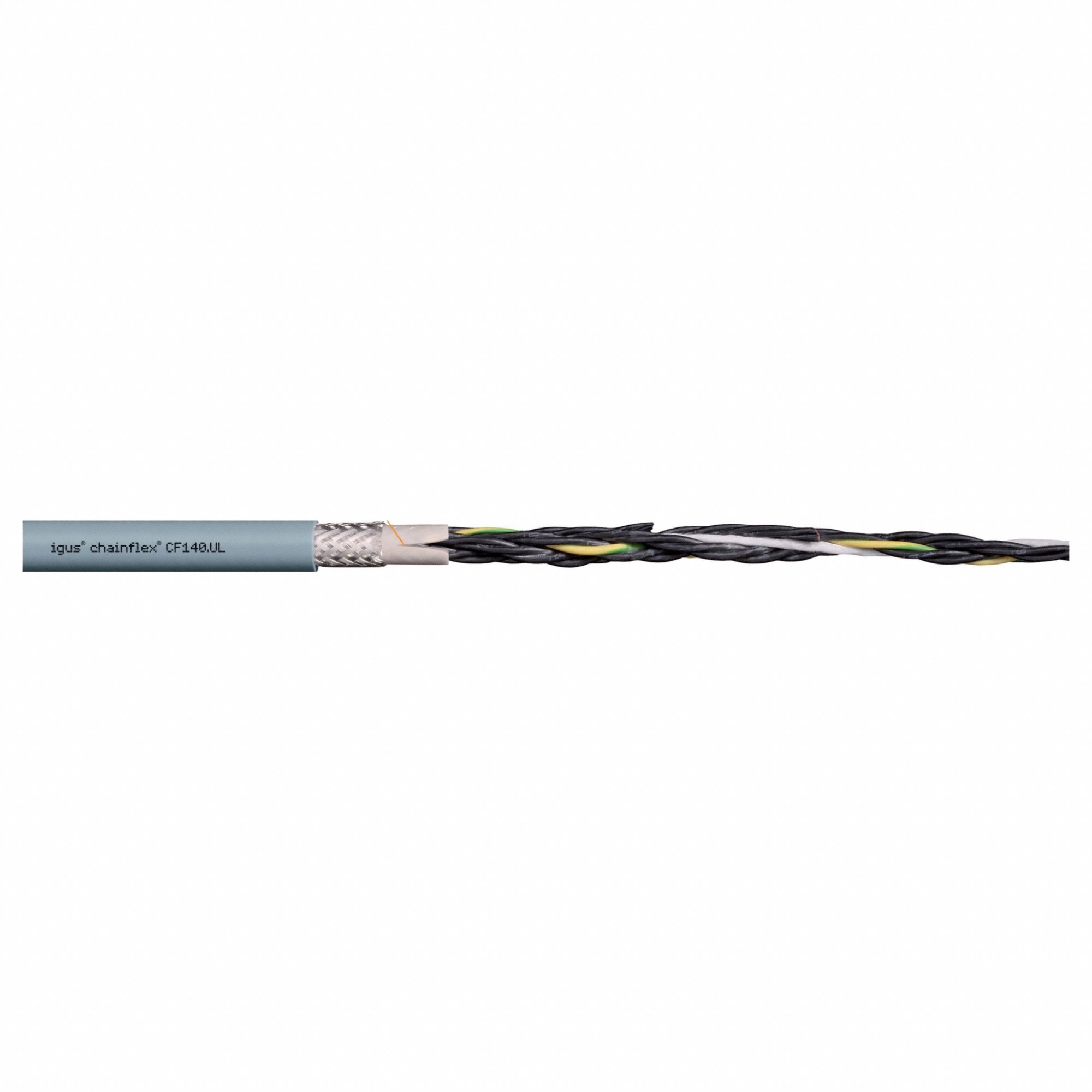

The CHAINFLEX Control Cable: 17 AWG is a continuous flexing control cable from the Chainflex CF140-UL series. This 7-conductor, single-conductor-configuration cable features a copper conductor, PVC jacket, and includes a ground, rated at 300 V. It is flame retardant (FT-2 standard) with minimum bend radius factors of 4 x OD for fixed, 6 x OD for flexible, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-2
Conductors	7
Cable Series	CF140-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF140-10-07
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
