Chainflex 3G-OTH-52967 — Technical Specifications

Name: Chainflex 3G-OTH-52967 CHAINFLEX Control Cable: 17 AWG, 7 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF130-10-07). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Flame Retardant; Standards: IPA 14644-1.
Brand: Chainflex

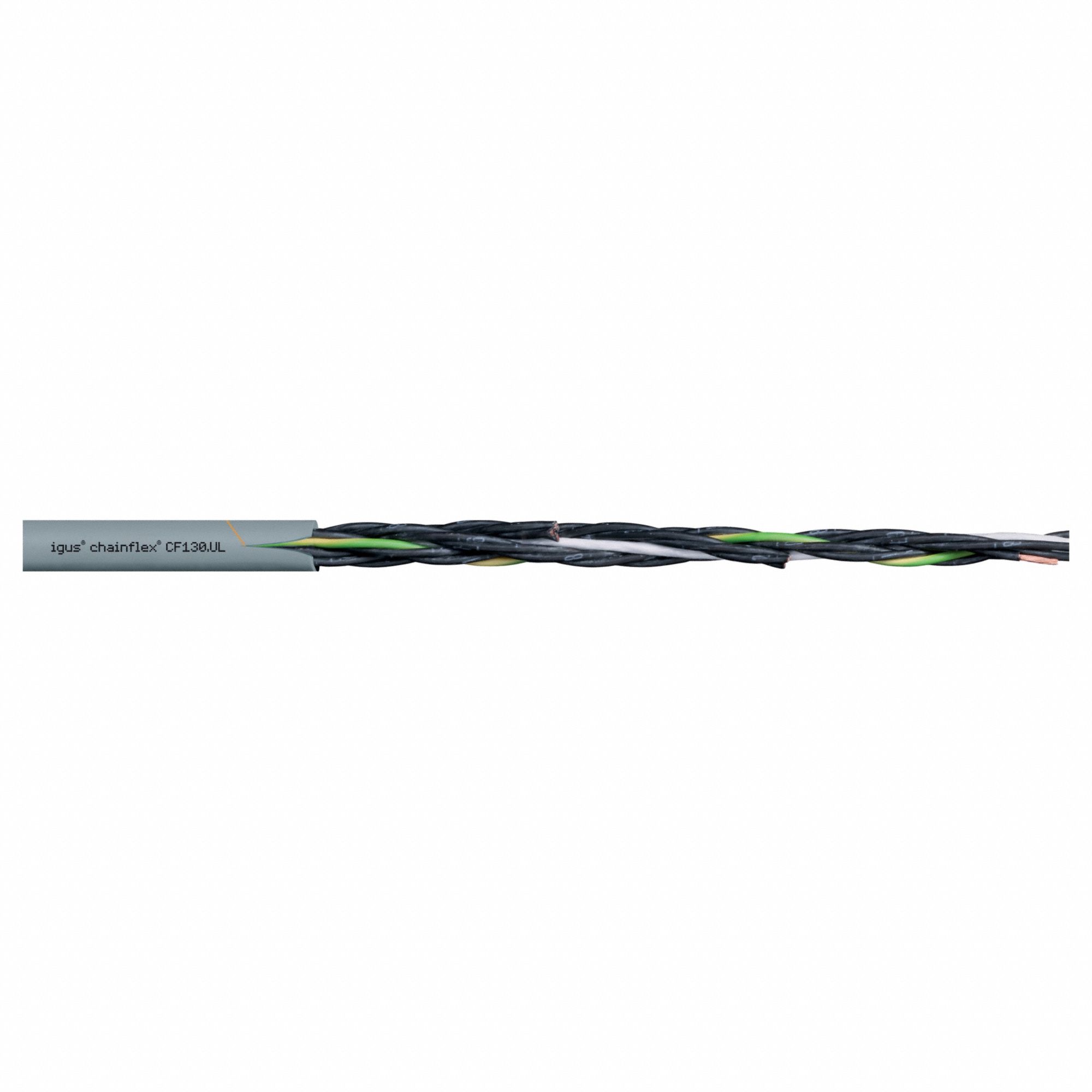

The CHAINFLEX Control Cable: 17 AWG is a continuous flexing control cable from the Chainflex series, model CF130-10-07. It features 7 copper conductors with a single conductor configuration, includes a ground, and is rated at 300 V with a PVC jacket. The cable is flame retardant and complies with IPA 14644-1 standards, with minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	IPA 14644-1
Conductors	7
Cable Series	CF130-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF130-10-07
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
