Chainflex 3G-OTH-51535 — Technical Specifications

Name: Chainflex 3G-OTH-51535 CHAINFLEX Control Cable: 20 AWG, 3 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF130-05-03). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Flame Retardant; Standards: VW-1.
Brand: Chainflex

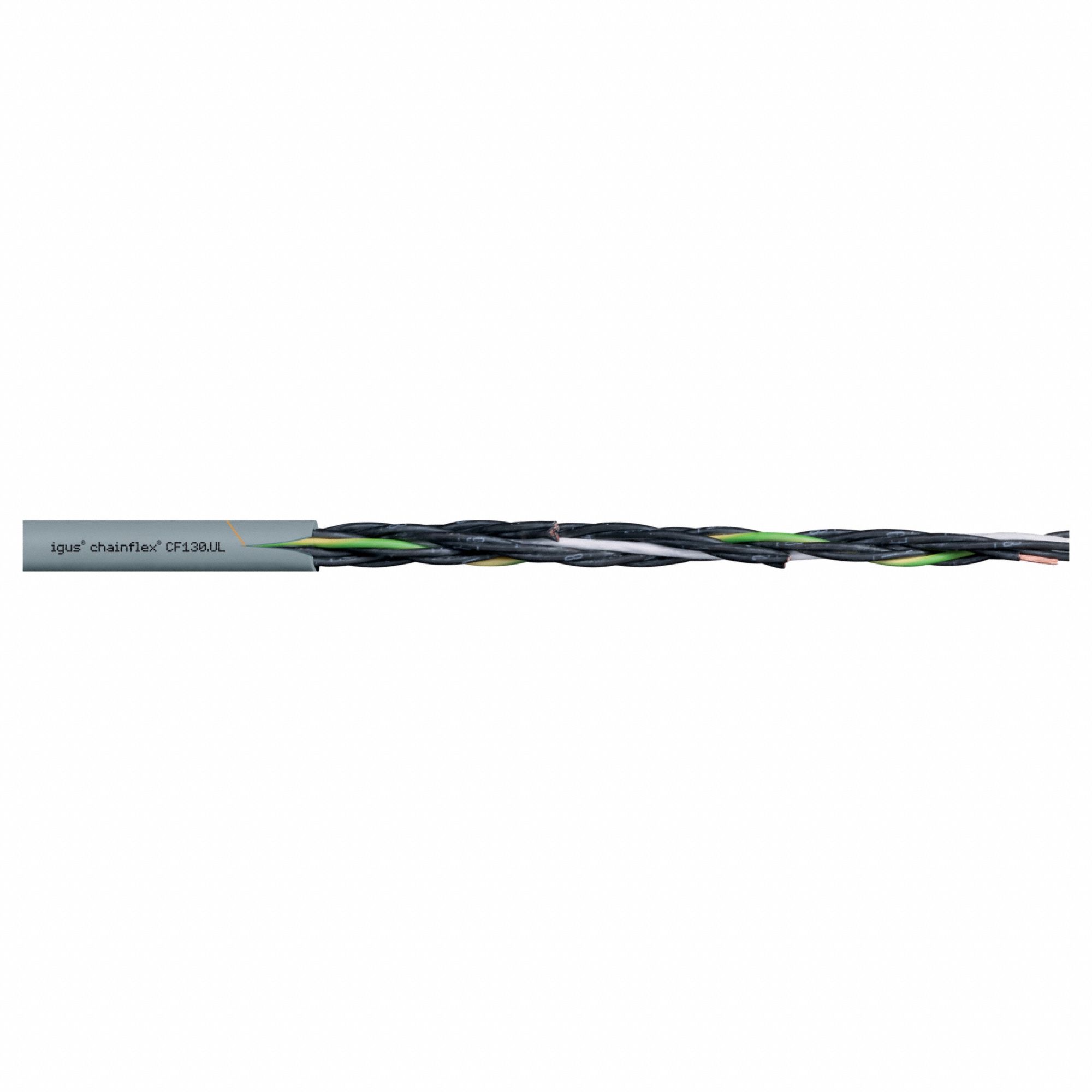

The CHAINFLEX Control Cable: 20 AWG (SKU 801J41, MPN CF130-05-03) is a continuous flexing control cable from the Chainflex CF130-UL series. This 3-conductor, single-conductor-configuration cable features a copper conductor, PVC jacket, and includes a ground, rated at 300 V. It offers minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications, and is VW-1 flame retardant.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	VW-1
Conductors	3
Cable Series	CF130-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF130-05-03
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
