Chainflex 3G-OTH-45424 — Technical Specifications

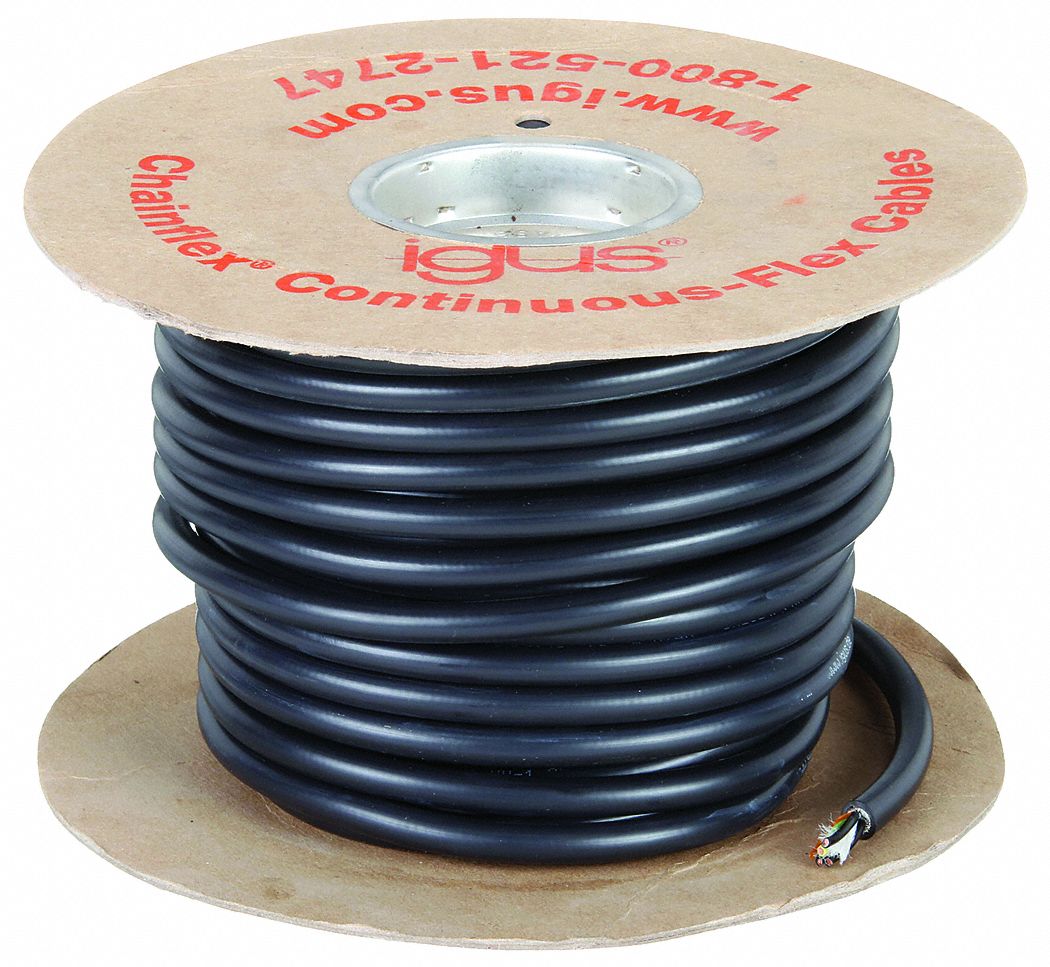

Name: Chainflex 3G-OTH-45424 CHAINFLEX Motor Cable: 12 AWG, 4 Conductors, 100 ft, PVC Jacket, 1,000 V (MPN CF31-40-04-100). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Heat Resistant; Standards: CE.
Brand: Chainflex

The CHAINFLEX CF31-40-04-100 is a continuous flexing power cable for VFDs, featuring 12 AWG, 4 conductors, a PVC jacket, and a 1,000 V rating. This CE-certified motor cable includes a ground conductor, is made of copper with a single conductor configuration, and offers heat resistance. It has minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF31
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Heat Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF31-40-04-100
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
