Chainflex 3G-OTH-54532 — Technical Specifications

Name: Chainflex 3G-OTH-54532 CHAINFLEX Control Cable: 18 AWG, 25 Conductors, 100 ft, PVC Jacket, 600 V (MPN CF6-07-24-100). Key specifications — Conductor Material: Copper; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CE; Product Type: Control Cable; Manufacturer Part Number: CF6-07-24-100.
Brand: Chainflex

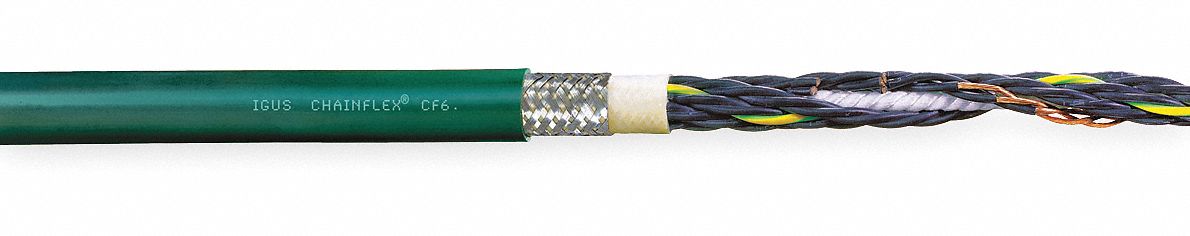

The CHAINFLEX CF6-07-24-100 is a continuous flexing control cable with 18 AWG, 25 conductors, a PVC jacket, and a 600 V rating. It features copper conductors with black and white numbering, is oil and grease resistant, and meets CE standards. Minimum bend radius factors are 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Standards	CE
Cable Series	CF6
Product Type	Control Cable
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Oil and Grease Resistant
Manufacturer Part Number	CF6-07-24-100
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
