Chainflex 3G-OTH-54519 — Technical Specifications

Name: Chainflex 3G-OTH-54519 CHAINFLEX Control Cable: 14 AWG, 25 Conductors, 100 ft, PVC Jacket, 600 V (MPN CF5-25-25-100). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CE.
Brand: Chainflex

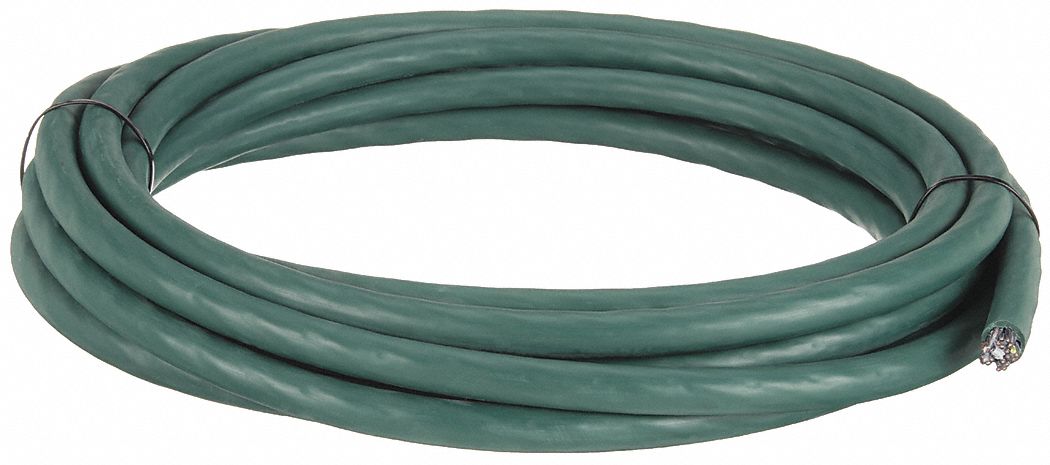

The CHAINFLEX Control Cable (SKU 2WGK3) is a continuous flexing control cable from the Chainflex CF5 series, featuring 14 AWG, 25 conductors, a PVC jacket, and a 600 V rating. It includes a copper ground conductor with black and white numbered insulation, is oil and grease resistant, and meets CE standards. Minimum bend radius factors are 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF5
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF5-25-25-100
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
