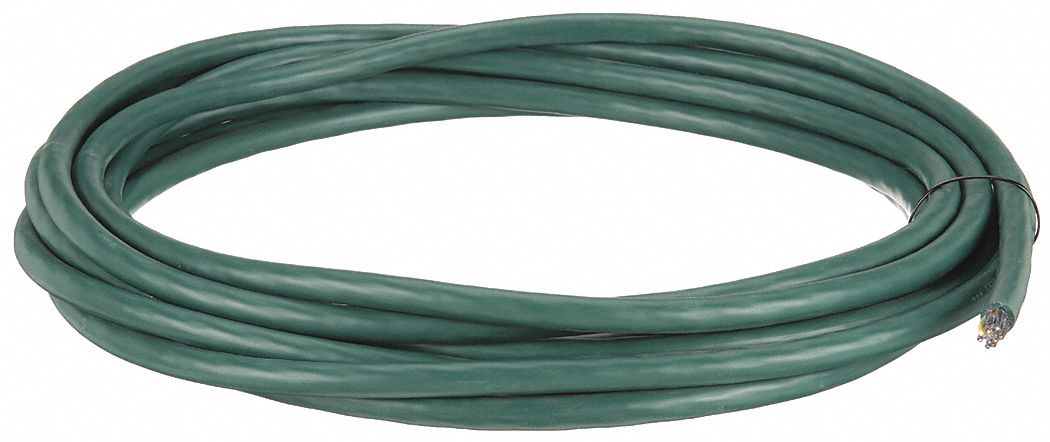

Chainflex 3G-OTH-51957 — Technical Specifications

Name: Chainflex 3G-OTH-51957 CHAINFLEX Control Cable: 18 AWG, 12 Conductors, 100 ft, PVC Jacket, 600 V (MPN CF5-07-12-100). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Heat Resistant; Standards: cRUus.
Brand: Chainflex

The CHAINFLEX CF5-07-12-100 is a continuous flexing control cable from the Chainflex series, featuring 18 AWG, 12 conductors, a PVC jacket, and a 600 V rating. It includes a ground conductor, uses copper conductors with black and white number coding, and is heat resistant. The cable meets cRUus standards and specifies minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Cable Series	CF5
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Heat Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF5-07-12-100
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
