Chainflex 3G-OTH-45416 — Technical Specifications

Name: Chainflex 3G-OTH-45416 CHAINFLEX Motor Cable: 12 AWG, 4 Conductors, 25 ft, PVC Jacket, 1,000 V (MPN CF31-40-04-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Heat Resistant; Standards: CE.
Brand: Chainflex

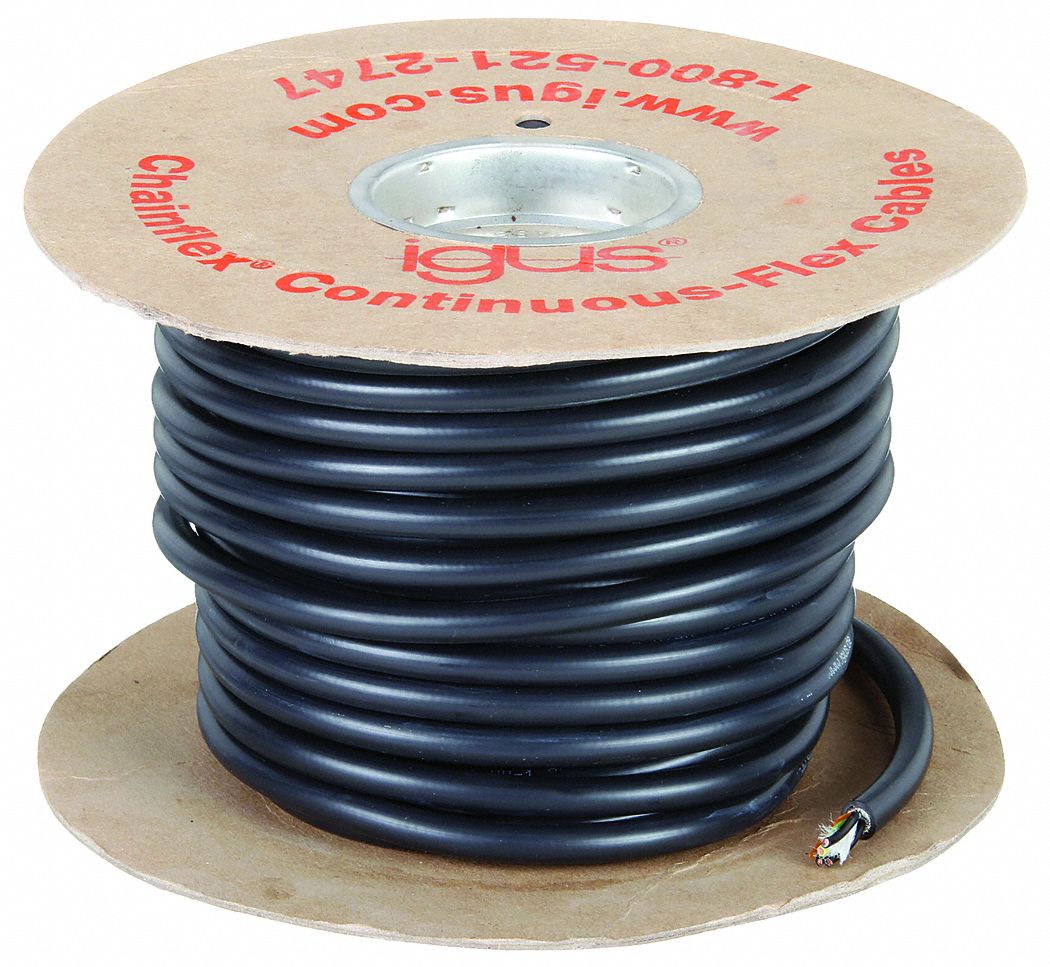

The CHAINFLEX CF31-40-04-25 is a continuous flexing power cable for VFDs, featuring 12 AWG, 4 conductors, a PVC jacket, and a 1,000 V rating. This CE-certified motor cable includes a ground conductor and is constructed with single copper conductors color-coded black with white numbers. It offers heat resistance and minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain).

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF31
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Heat Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF31-40-04-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
