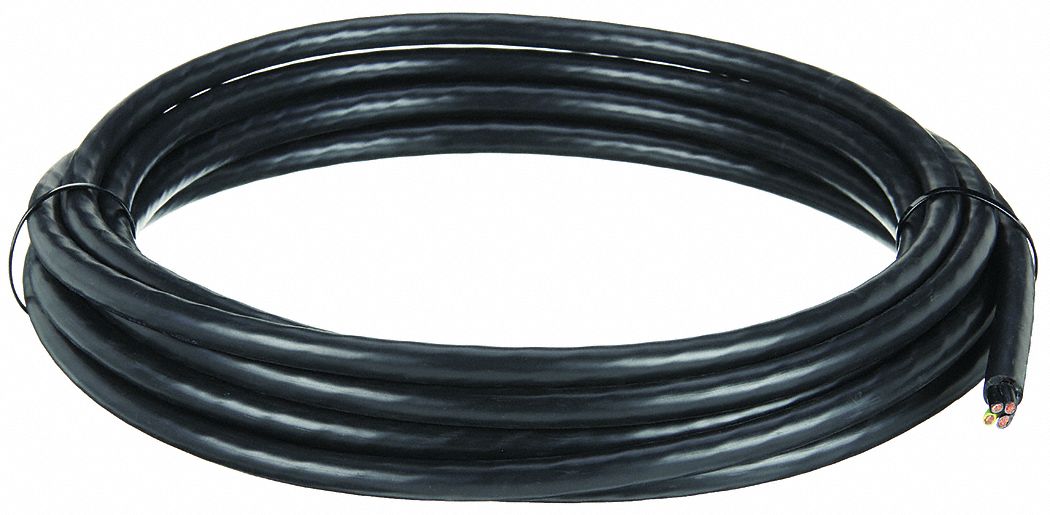

Chainflex 3G-OTH-45590 — Technical Specifications

Name: Chainflex 3G-OTH-45590 CHAINFLEX Motor Cable: 8 AWG, 4 Conductors, 25 ft, PVC Jacket, 1,000 V (MPN CF30-100-04-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Heat Resistant; Standards: cRUus.
Brand: Chainflex

The CHAINFLEX CF30-100-04-25 is a continuous flexing power cable for VFDs, featuring 8 AWG, 4 conductors, a PVC jacket, and a 1,000 V rating. This copper-conductor motor cable includes a ground, is heat resistant, and meets cRUus standards. It offers minimum bend radius factors of 4 x OD for fixed, 6 x OD for flexible, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Cable Series	CF30
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Heat Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF30-100-04-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
