Chainflex 3G-OTH-45370 — Technical Specifications

Name: Chainflex 3G-OTH-45370 CHAINFLEX Motor Cable: 12 AWG, 4 Conductors, 25 ft, PVC Jacket, 1,000 V (MPN CF30-40-04-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: cRUus.
Brand: Chainflex

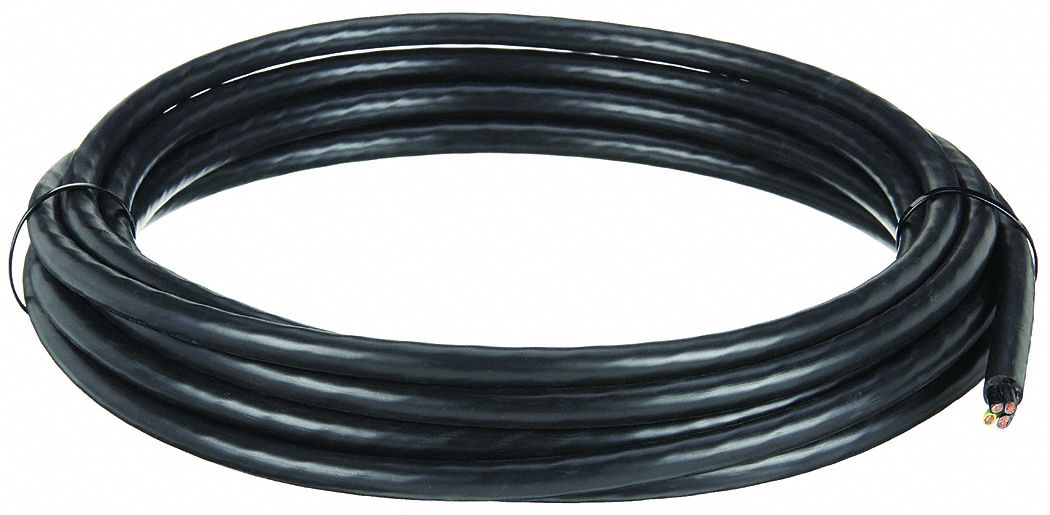

The CHAINFLEX CF30-40-04-25 is a continuous flexing power cable for VFDs, featuring 12 AWG, 4 conductors, a PVC jacket, and a 1,000 V rating. This 25 ft motor cable includes a ground conductor, is made of copper with a single conductor configuration, and is oil and grease resistant. It meets cRUus standards and has minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain).

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Cable Series	CF30
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF30-40-04-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
