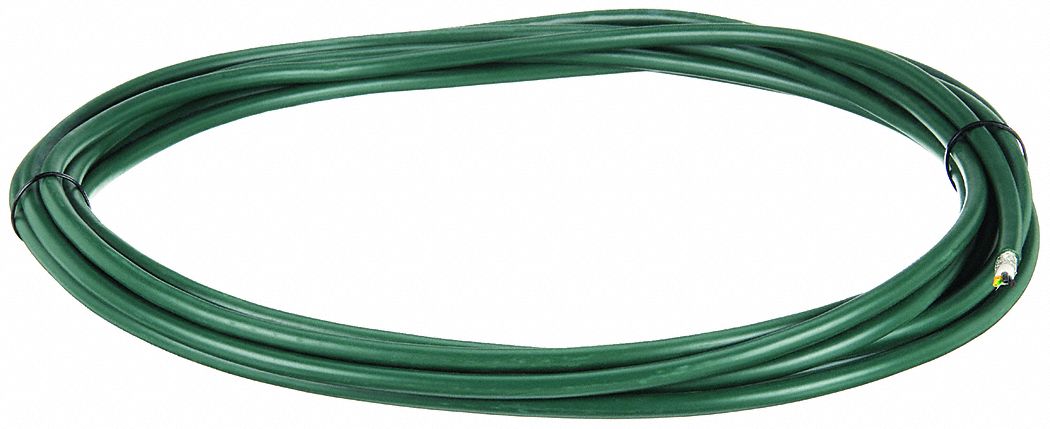

Chainflex 3G-OTH-49406 — Technical Specifications

Name: Chainflex 3G-OTH-49406 CHAINFLEX Control Cable: 16 AWG, 3 Conductors, 25 ft, PVC Jacket, 600 V (MPN CF6-15-03-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CE.
Brand: Chainflex

The CHAINFLEX Control Cable (SKU 2TZP5) is a continuous flexing control cable from the Chainflex CF6 series, featuring 16 AWG, 3 conductors, a PVC jacket, and a 600 V rating. It includes a copper ground conductor with black/white numbered insulation, is oil and grease resistant, and meets CE standards. Minimum bend radius factors are 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF6
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF6-15-03-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
