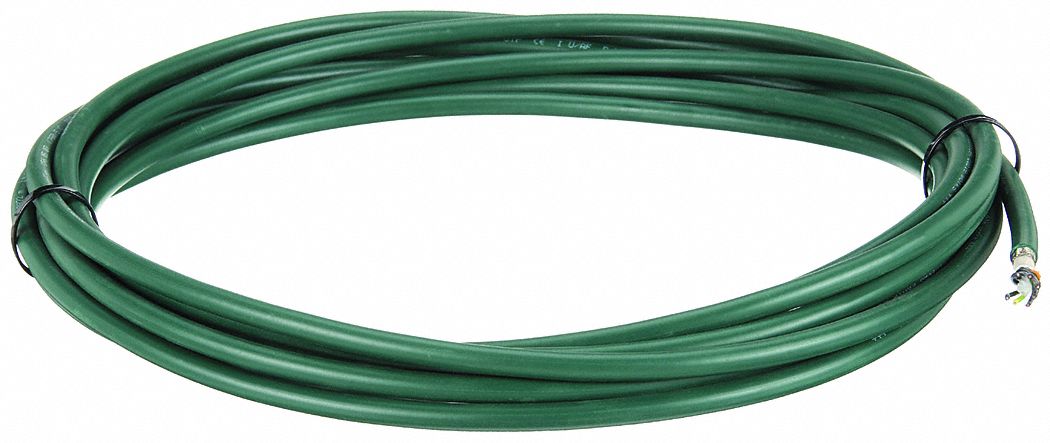

Chainflex 3G-OTH-46406 — Technical Specifications

Name: Chainflex 3G-OTH-46406 CHAINFLEX Control Cable: 20 AWG, 7 Conductors, 25 ft, PVC Jacket, 600 V (MPN CF6-05-07-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Heat Resistant; Standards: CE.
Brand: Chainflex

The CHAINFLEX CF6-05-07-25 is a continuous flexing control cable from the Chainflex series, featuring 20 AWG, 7 conductors, a PVC jacket, and a 600 V rating. It includes a ground conductor, is made of copper with a single conductor configuration, and is heat resistant. The cable meets CE standards and has minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF6
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Heat Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF6-05-07-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
