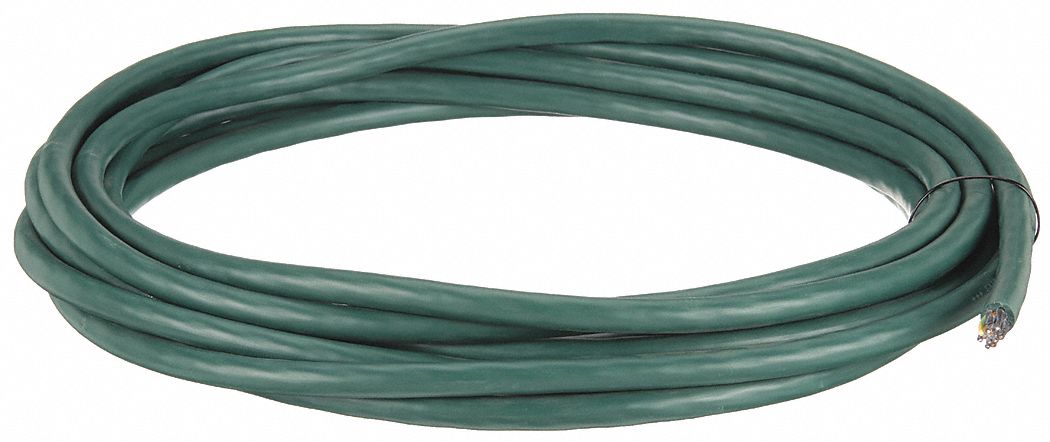

Chainflex 3G-OTH-53551 — Technical Specifications
The CHAINFLEX Control Cable (SKU 2TZK4) is a continuous flexing control cable from the Chainflex CF5 series, featuring 18 AWG, 12 conductors, a PVC jacket, and a 600 V rating. It includes a ground conductor, uses copper single conductors with black/white numbering, and is oil and grease resistant. Minimum bend radius factors are 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications, with CE standards compliance.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | CHAINFLEX |
| Series | Chainflex |
| Standards | CE |
| Cable Series | CF5 |
| Product Type | Control Cable |
| Includes Ground | Yes |
| Conductor Material | Copper |
| Conductor Color Code | Black with White Numbers |
| Resistance Properties | Oil and Grease Resistant |
| Conductor Configuration | Single |
| Manufacturer Part Number | CF5-07-12-25 |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Minimum Bend Radius Factor - E-Chain | 6.8 x OD |
| Minimum Bend Radius Factor - Flexible | 5 x OD |
