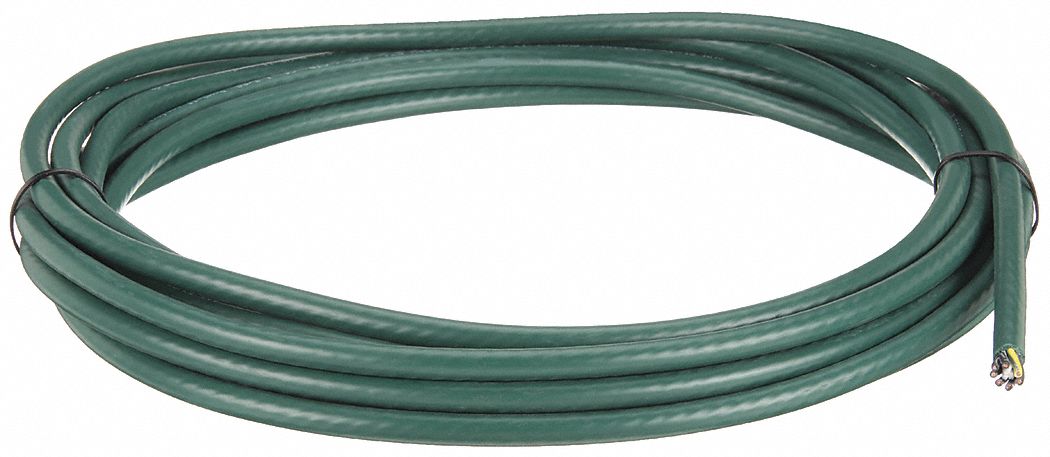

Chainflex 3G-OTH-46287 — Technical Specifications

Name: Chainflex 3G-OTH-46287 CHAINFLEX Control Cable: 20 AWG, 7 Conductors, 25 ft, PVC Jacket, 600 V (MPN CF5-05-07-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Heat Resistant; Standards: CE.
Brand: Chainflex

The CHAINFLEX Control Cable (SKU 2TZJ7) is a continuous flexing control cable from the Chainflex CF5 series, featuring 20 AWG, 7 conductors, a PVC jacket, and a 600 V rating. It includes a ground conductor, uses copper conductors with a single configuration, and is color-coded black with white numbers. The cable is heat resistant, CE certified, and has minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF5
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Heat Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF5-05-07-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
