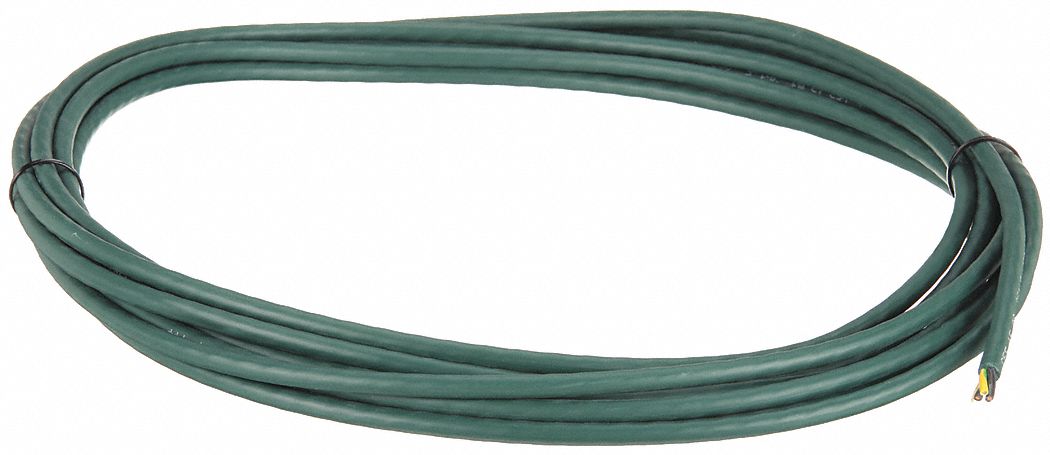

Chainflex 3G-OTH-51892 — Technical Specifications

Name: Chainflex 3G-OTH-51892 CHAINFLEX Control Cable: 20 AWG, 3 Conductors, 25 ft, PVC Jacket, 600 V (MPN CF5-05-03-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Oil and Grease Resistant; Standards: cRUus.
Brand: Chainflex

The CHAINFLEX Control Cable (SKU 2TZJ6) is a continuous flexing control cable from the Chainflex CF5 series, featuring 20 AWG, 3 conductors, a PVC jacket, and a 600 V rating. It includes a ground conductor, is made of copper with a single conductor configuration, and is oil and grease resistant. The cable meets cRUus standards and has minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Cable Series	CF5
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF5-05-03-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
