Chainflex 3G-OTH-46058 — Technical Specifications

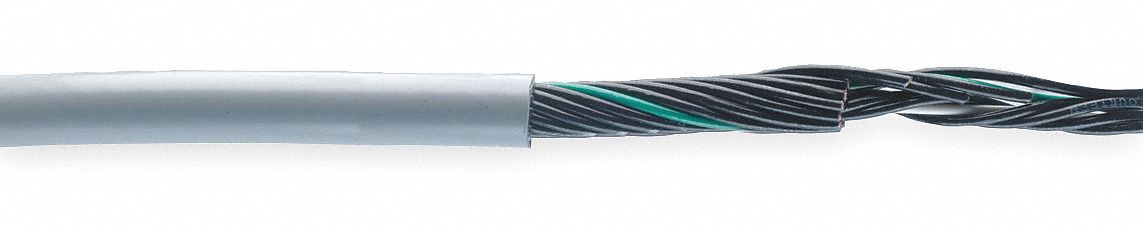

The CHAINFLEX Control Cable (SKU 2TZE2, MPN CF130US-25-07) is a continuous flexing exposed run tray cable with 14 AWG conductor size and 7 conductors. This unshielded PVC cable features a minimum bend radius factor of 5 x OD for fixed installations and 7.5 x OD for flexible applications, and is available in gray.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | PVC, Order by the Foot, Gray |
| Brand | CHAINFLEX |
| Shielding | Unshielded |
| Conductors | 7 |
| Conductor Size | 14 AWG |
| Manufacturer Part Number | CF130US-25-07 |
| Minimum Bend Radius Factor - Fixed | 5 x OD |
| Minimum Bend Radius Factor - Flexible | 7.5 x OD |
