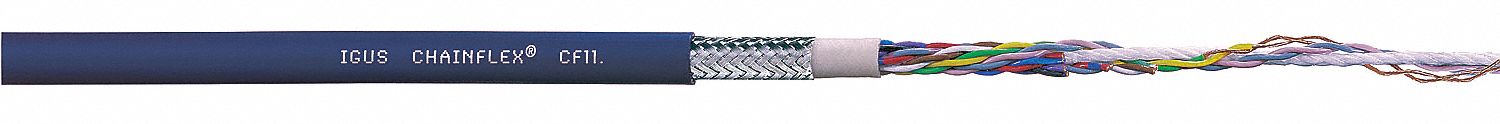

Chainflex 3G-OTH-48375 — Technical Specifications

Name: Chainflex 3G-OTH-48375 CHAINFLEX Bus Cable: (2) Shielded Twisted Pr 26 AWG/(2) Single 22 AWG, TPR, Order by the Foot (MPN CFBUS-055-1). Key specifications — Bus System: FireWire IEEE 1394a/b; Conductor Grouping: (2) Shielded Twisted Pair 26 AWG/(2) Single 22 AWG; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Shielding: Shielded; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Bus Cable (SKU 24C171) is a continuous flexing bus drop cable designed for FireWire IEEE 1394a/b systems. It features (2) shielded twisted pair 26 AWG and (2) single 22 AWG conductors, with a minimum bend radius factor of 5 x OD for fixed installations and 8 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	TPR, Order by the Foot
Brand	CHAINFLEX
Shielding	Shielded
Bus System	FireWire IEEE 1394a/b
Conductor Grouping	(2) Shielded Twisted Pair 26 AWG/(2) Single 22 AWG
Manufacturer Part Number	CFBUS-055-1
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
