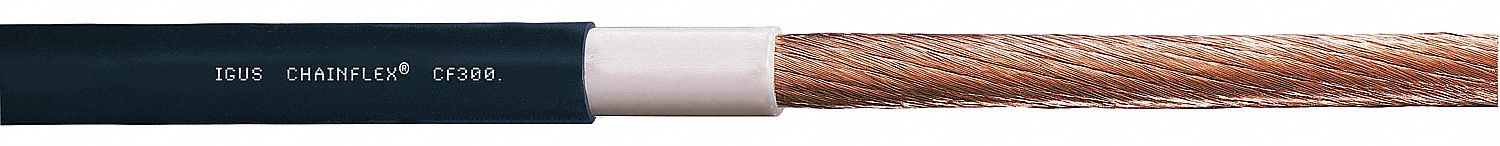

Chainflex 3G-OTH-47716 — Technical Specifications

Name: Chainflex 3G-OTH-47716 CHAINFLEX Motor Cable: 300 kcmil, 1 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF300-1500-01-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: cRUus.
Brand: Chainflex

The CHAINFLEX Motor Cable: 300 kcmil is a continuous flexing power cable from the Chainflex CF300-UL series, featuring a single copper conductor with a TPR jacket rated at 1,000 V. It includes a ground conductor and is oil and grease resistant, with minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications. This cRUus-listed cable is sold by the foot under MPN CF300-1500-01-1.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Conductors	1
Cable Series	CF300-UL
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF300-1500-01-1
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
