Chainflex 3G-OTH-48065 — Technical Specifications

Name: Chainflex 3G-OTH-48065 CHAINFLEX Motor Cable: 3/0 AWG, 1 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF300-950-01-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Coolant Resistant; Standards: cRUus.
Brand: Chainflex

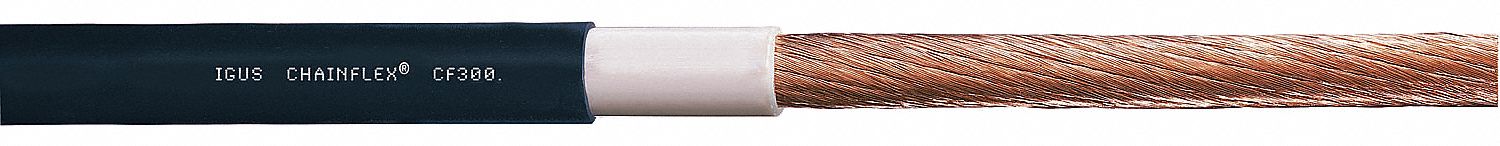

The CHAINFLEX CF300-UL Motor Cable (3/0 AWG, MPN CF300-950-01-1) is a continuous flexing power cable from the Chainflex series, featuring a single copper conductor with an integrated ground and a TPR jacket rated for 1,000 V. It is coolant resistant and certified to cRUus standards, with minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Conductors	1
Cable Series	CF300-UL
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Coolant Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF300-950-01-1
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
