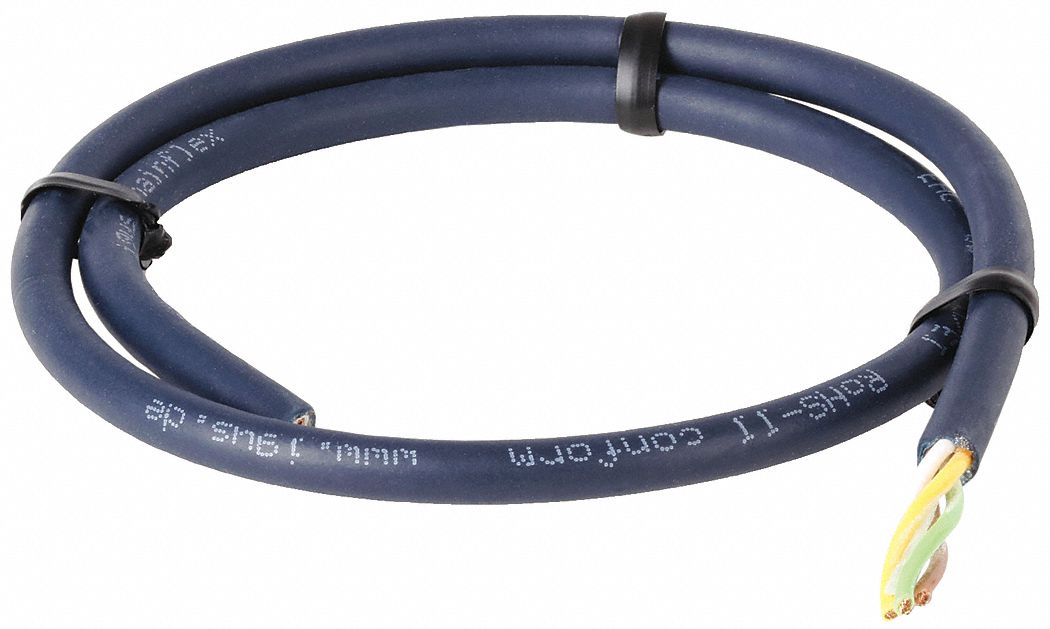

Chainflex 3G-OTH-53461 — Technical Specifications

Name: Chainflex 3G-OTH-53461 CHAINFLEX Control Cable: 12 AWG, 4 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-40-04-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Notch Resistance; Standards: CE.
Brand: Chainflex

The CHAINFLEX Control Cable: 12 AWG is a continuous flexing control cable from the Chainflex CF9 series, featuring 4 conductors of single copper wire with a TPR jacket rated at 300 V. It includes a ground conductor, offers notch resistance, and meets CE standards. Minimum bend radius factors are 3 x OD for fixed installation, 4 x OD for flexible use, and 5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Conductors	4
Cable Series	CF9
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Notch Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF9-40-04-1
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
