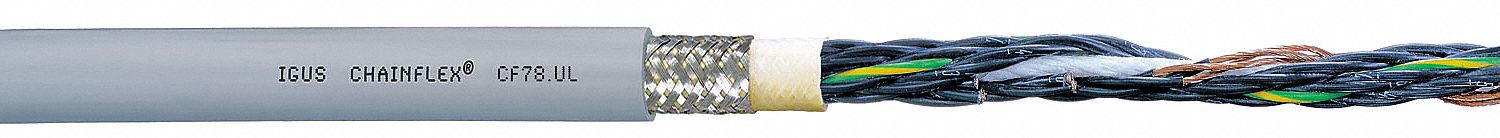

Chainflex 3G-OTH-50053 — Technical Specifications

Name: Chainflex 3G-OTH-50053 CHAINFLEX Control Cable: 14 AWG, 7 Conductors, 25 ft, PUR Jacket, 1,000 V (MPN CF78-UL-25-07-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CE.
Brand: Chainflex

The CHAINFLEX Control Cable (CF78-UL) is a continuous flexing control cable with 14 AWG, 7 conductors, a PUR jacket, and a 1,000 V rating. It features copper conductors, a single conductor configuration, and includes a ground. The cable is oil and grease resistant, CE certified, and has minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF78-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF78-UL-25-07-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
