Chainflex 3G-OTH-53358 — Technical Specifications

Name: Chainflex 3G-OTH-53358 CHAINFLEX Control Cable: 14 AWG, 4 Conductors, 25 ft, PUR Jacket, 1,000 V (MPN CF78-UL-25-04-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Notch Resistance; Standards: CE.
Brand: Chainflex

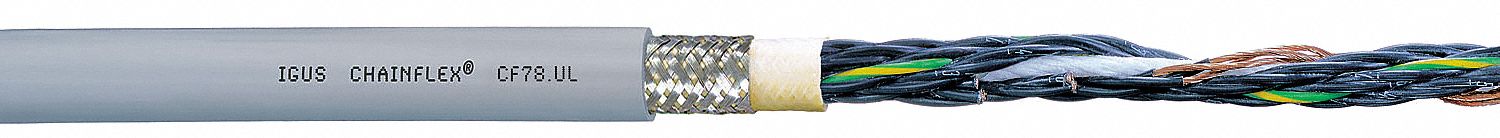

The CHAINFLEX Control Cable (SKU 24C057, MPN CF78-UL-25-04-25) is a continuous flexing control cable from the Chainflex CF78-UL series. This 14 AWG, 4-conductor cable features a PUR jacket, a 1,000 V rating, copper conductors, and includes a ground conductor. It offers notch resistance and meets CE standards, with minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF78-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Notch Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF78-UL-25-04-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
