Chainflex 3G-OTH-53370 — Technical Specifications

Name: Chainflex 3G-OTH-53370 CHAINFLEX Control Cable: 18 AWG, 12 Conductors, 25 ft, PUR Jacket, 1,000 V (MPN CF78-UL-07-12-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Notch Resistance; Standards: CE.
Brand: Chainflex

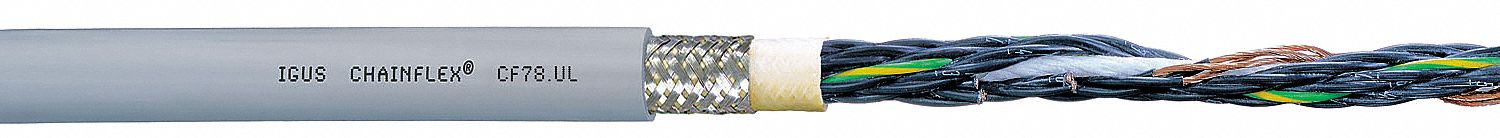

The CHAINFLEX Control Cable (SKU 24C050, MPN CF78-UL-07-12-25) is a continuous flexing control cable from the Chainflex CF78-UL series. It features 18 AWG, 12 conductors with a copper conductor material, single conductor configuration, and a PUR jacket rated at 1,000 V. This 25 ft cable includes a ground conductor, has black conductors with white numbers, and offers notch resistance with minimum bend radius factors of 4 x OD (fixed), 5 x OD (flexible), and 6.8 x OD (e-chain), complying with CE standards.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF78-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Notch Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF78-UL-07-12-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
