Chainflex 3G-OTH-49659 — Technical Specifications

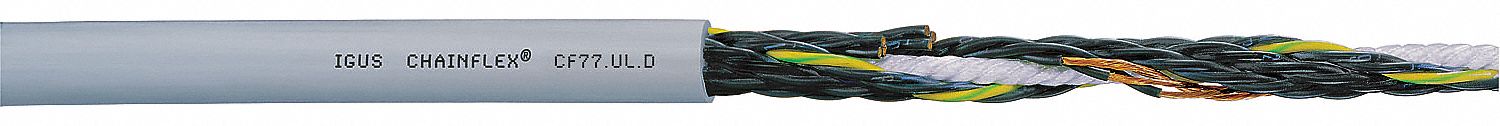

The CHAINFLEX Control Cable (SKU 24C026, MPN CF77-UL-15-25-100) is a continuous flexing control cable from the Chainflex series, featuring 16 AWG, 25 conductors, a 100 ft length, PUR jacket, and a 1,000 V rating. It includes a ground, uses copper conductors with a single configuration, and has black conductors with white numbers. The cable meets cRUus standards, is flame retardant, and has minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | CHAINFLEX |
| Series | Chainflex |
| Standards | cRUus |
| Cable Series | CF77-UL |
| Product Type | Control Cable |
| Includes Ground | Yes |
| Conductor Material | Copper |
| Conductor Color Code | Black with White Numbers |
| Resistance Properties | Flame Retardant |
| Conductor Configuration | Single |
| Manufacturer Part Number | CF77-UL-15-25-100 |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Minimum Bend Radius Factor - E-Chain | 6.8 x OD |
| Minimum Bend Radius Factor - Flexible | 5 x OD |
