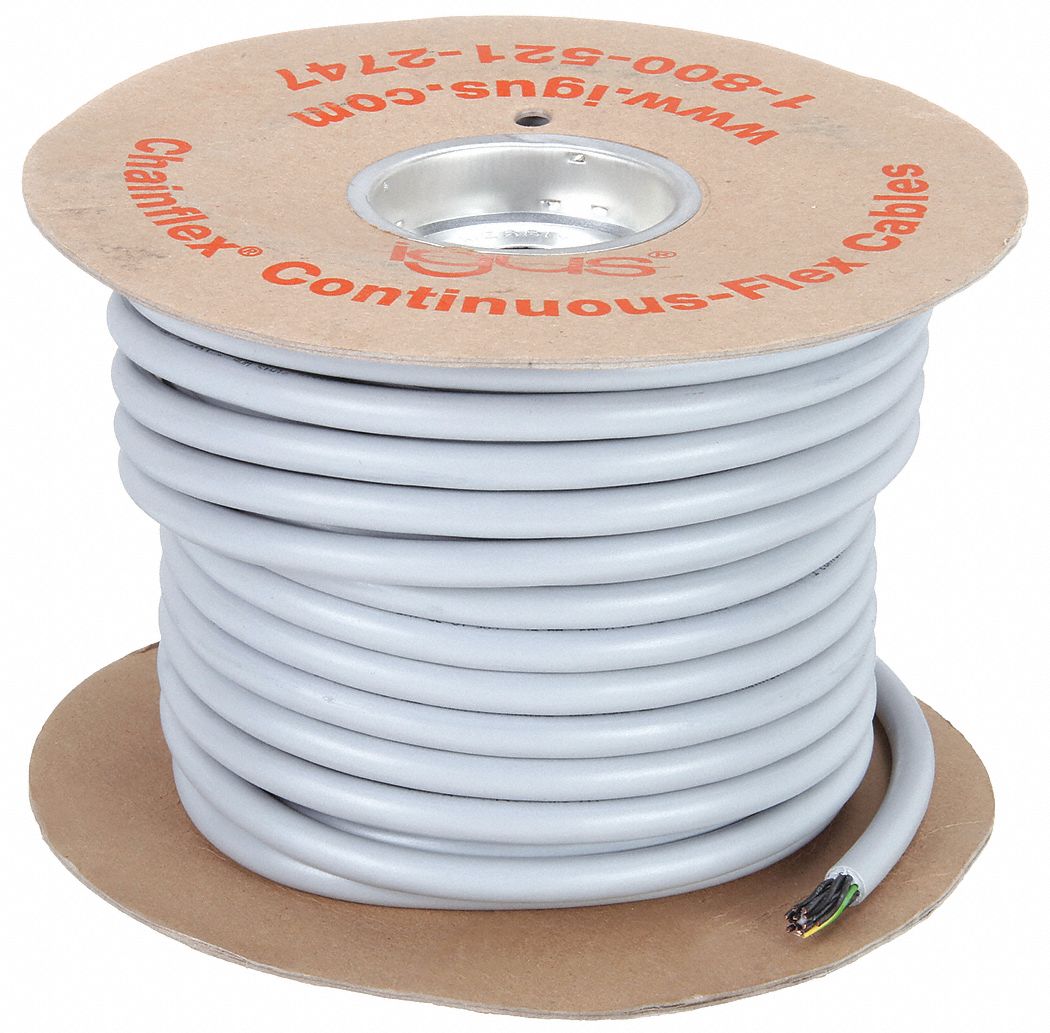

Chainflex 3G-OTH-47863 — Technical Specifications

Name: Chainflex 3G-OTH-47863 CHAINFLEX Control Cable: 18 AWG, 12 Conductors, 100 ft, PUR Jacket, 1,000 V (MPN CF77-UL-07-12-100). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Notch Resistance; Standards: cRUus.
Brand: Chainflex

The CHAINFLEX CF77-UL Control Cable is a continuous flexing control cable with 18 AWG, 12 conductors, a PUR jacket, and a 1,000 V rating. It features copper conductors, a single conductor configuration, and includes a ground. The cable meets cRUus standards and offers notch resistance, with minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Cable Series	CF77-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Notch Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF77-UL-07-12-100
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
