Chainflex 3G-OTH-47619 — Technical Specifications

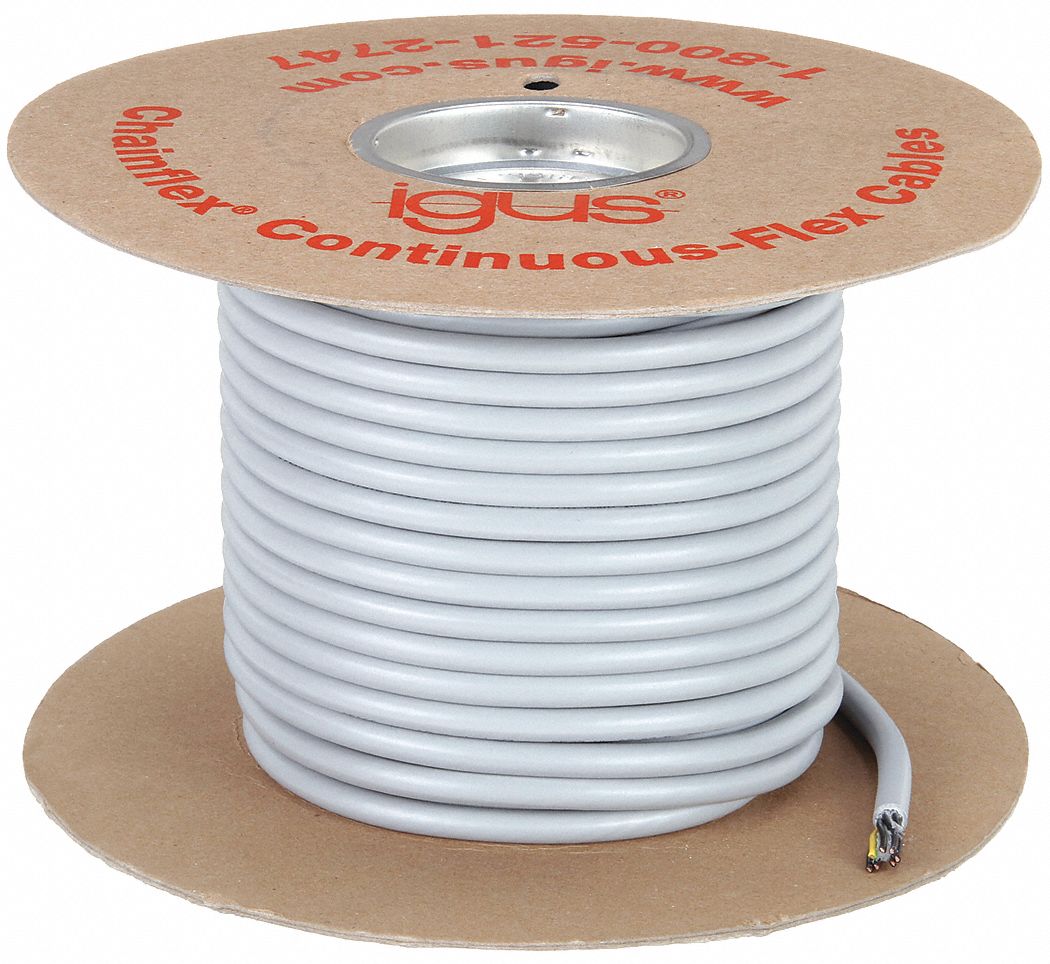

The CHAINFLEX Control Cable (SKU 24C017, MPN CF77-UL-07-07-100) is a continuous flexing control cable from the Chainflex series. It features 18 AWG, 7 conductors, a PUR jacket, and a 1,000 V rating. The cable includes a ground, uses copper conductors with a single configuration, and is flame retardant. It meets cRUus standards and has minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | CHAINFLEX |
| Series | Chainflex |
| Standards | cRUus |
| Cable Series | CF77-UL |
| Product Type | Control Cable |
| Includes Ground | Yes |
| Conductor Material | Copper |
| Conductor Color Code | Black with White Numbers |
| Resistance Properties | Flame Retardant |
| Conductor Configuration | Single |
| Manufacturer Part Number | CF77-UL-07-07-100 |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Minimum Bend Radius Factor - E-Chain | 6.8 x OD |
| Minimum Bend Radius Factor - Flexible | 5 x OD |
