Chainflex 3G-OTH-48264 — Technical Specifications

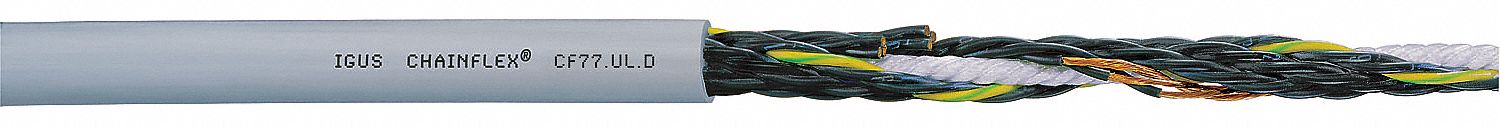

The CHAINFLEX Control Cable (SKU 24A999, MPN CF77-UL-07-20-25) is a continuous flexing control cable from the Chainflex CF77-UL series. It features 18 AWG, 20 conductors with a copper single conductor configuration, a PUR jacket, and a 1,000 V rating. The cable includes a ground conductor, has black conductors with white numbers, and offers notch resistance. It meets CE standards and has minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | CHAINFLEX |
| Series | Chainflex |
| Standards | CE |
| Cable Series | CF77-UL |
| Product Type | Control Cable |
| Includes Ground | Yes |
| Conductor Material | Copper |
| Conductor Color Code | Black with White Numbers |
| Resistance Properties | Notch Resistance |
| Conductor Configuration | Single |
| Manufacturer Part Number | CF77-UL-07-20-25 |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Minimum Bend Radius Factor - E-Chain | 6.8 x OD |
| Minimum Bend Radius Factor - Flexible | 5 x OD |
