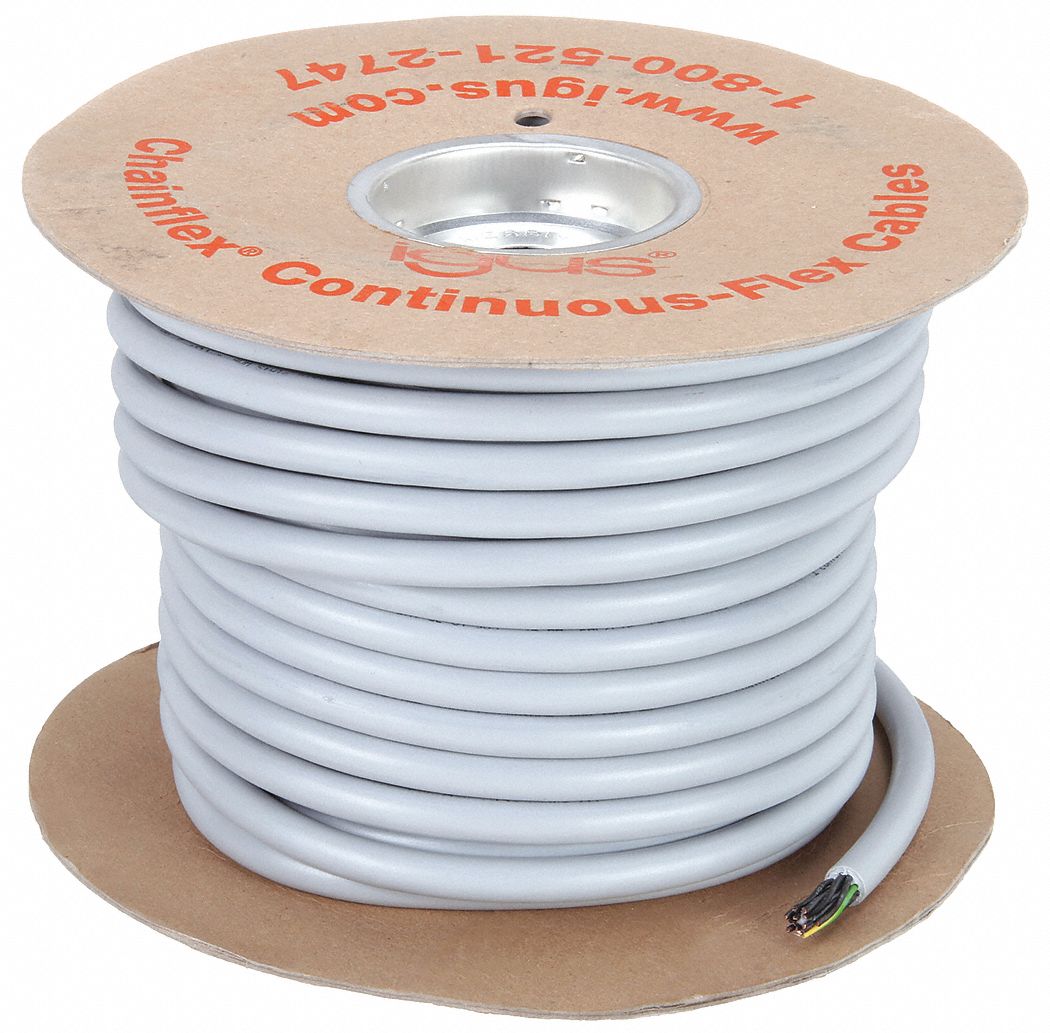

Chainflex 3G-OTH-47840 — Technical Specifications

Name: Chainflex 3G-OTH-47840 CHAINFLEX Control Cable: 18 AWG, 12 Conductors, 25 ft, PUR Jacket, 1,000 V (MPN CF77-UL-07-12-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Flame Retardant; Standards: CE.
Brand: Chainflex

The CHAINFLEX Control Cable (SKU 24A998, MPN CF77-UL-07-12-25) is a continuous flexing control cable from the Chainflex CF77-UL series. This 25-foot cable features 18 AWG, 12 copper conductors with a PUR jacket, rated at 1,000 V, and includes a ground conductor. It is flame retardant, CE certified, and designed for fixed, flexible, and e-chain applications with minimum bend radius factors of 4 x OD, 5 x OD, and 6.8 x OD respectively.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF77-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF77-UL-07-12-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
