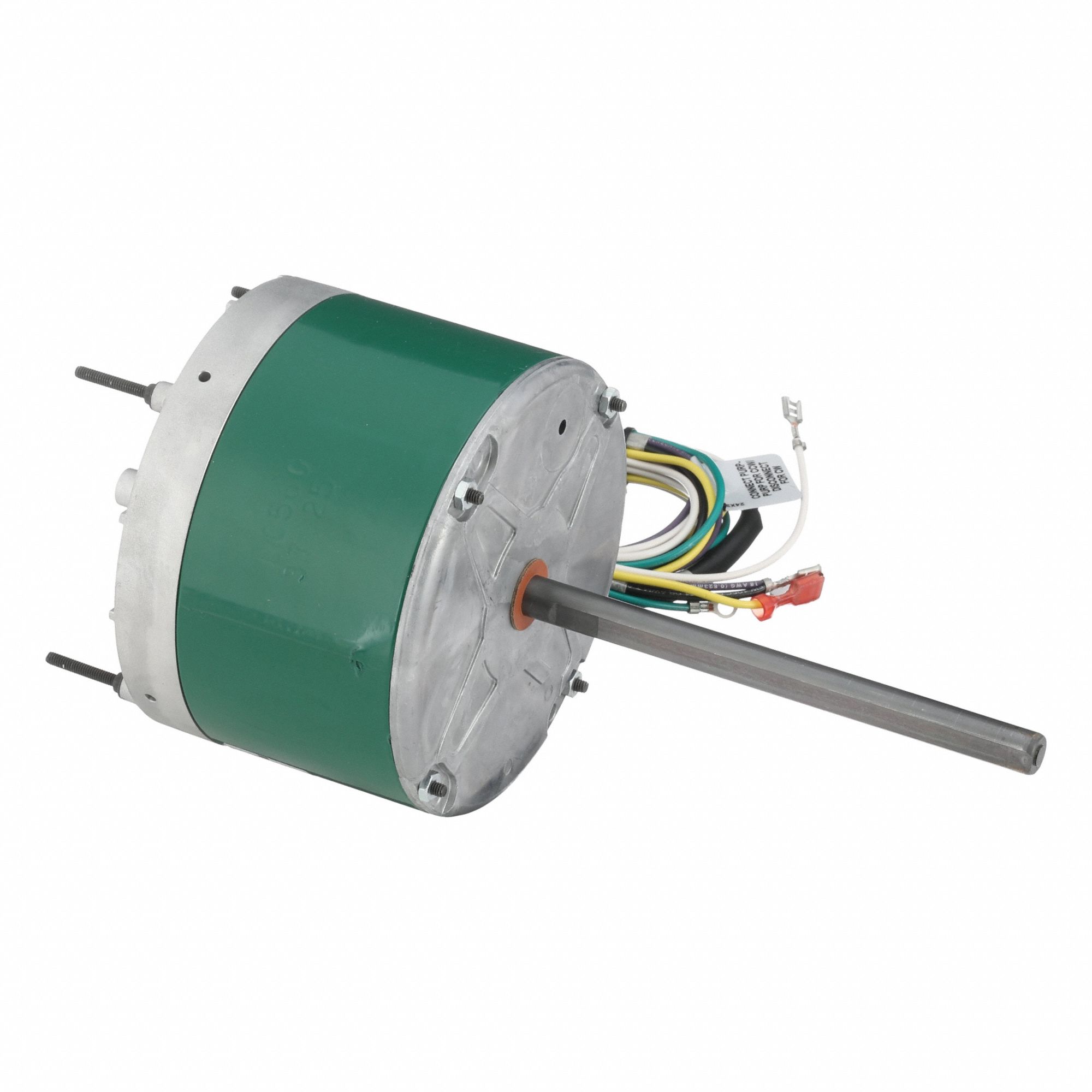

Century 3G-OTH-54414 — Technical Specifications
The CENTURY Evergreen® OM is a 48-frame, constant-RPM ECM condenser fan motor (MPN 6303S) designed to replace PSC outdoor condenser fan motors. It operates at 825 RPM on 208-230V AC, draws 2.8 A full-load amps, and is rated 1/12 to 1/3 hp (250 W) with a TEAO enclosure. Rotation is set via quick-connect plugs, and it includes optional hardware for all mounting configurations.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Stud, ECM, Totally Enclosed Air-Over |
| Brand | CENTURY |
| Features | Rotation by Quick Connect Plugs |
| Includes | Optional Hardware for all Mounting Configurations |
| Frame Size | 48 |
| ECM Motor Type | Constant RPM |
| Motor Enclosure | TEAO |
| Rated Horsepower | 1/12 to 1/3 hp |
| Horsepower/Wattage | 250 W |
| For Motor Replacement | PSC Outdoor Condenser Fan Motor |
| Nameplate RPM @ 60 Hz | 825 RPM |
| Full Load Amps @ 60 Hz | 2.8 A |
| Includes User Interface | No |
| Manufacturer Part Number | 6303S |
| Nameplate Voltage @ 60 Hz | 208-230V AC |
| External Controller Compatible | No |
| Compatible With External Controller | Not External Control Compatible |
