Century 3G-OTH-54646 — Technical Specifications

Name: Century 3G-OTH-54646 CENTURY General Purpose: Cradle Base Mount, Open Drip Proof, 3/4 hp, 460/200-230V AC, 3,450 RPM (MPN H841V1). Key specifications — Brand: CENTURY; Nameplate Voltage @ 60 Hz: 460/200-230V AC; Full Load Current @ 60 Hz: 1.4/2.8 A; Nameplate RPM @ 60 Hz: 3,450 RPM; Motor Enclosure: ODP.
Brand: Century

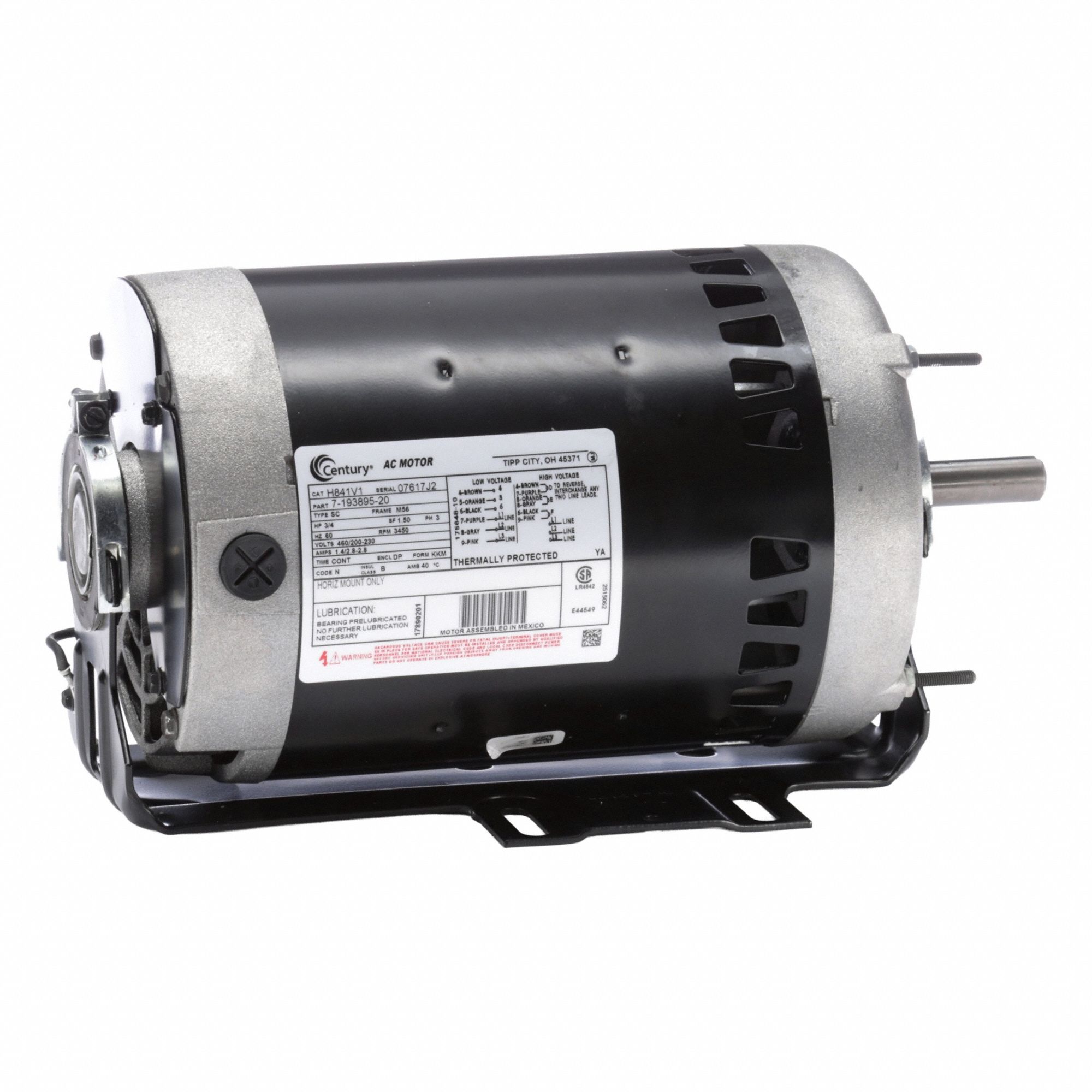

The CENTURY General Purpose: Cradle Base Mount is a cradle base 3-phase general purpose AC motor (SKU 410JD3, MPN H841V1) with an ODP enclosure, rated at 3/4 hp, 3,450 RPM, and 460/200-230V AC. Its full load current is 1.4/2.8 A at 60 Hz.

View Product & Quote

Technical Specifications

Parameter	Value
AC	460/200-230V
Type	Open Drip Proof, 3/4 hp, 3,450 RPM
Brand	CENTURY
Motor Enclosure	ODP
Nameplate RPM @ 60 Hz	3,450 RPM
Manufacturer Part Number	H841V1
Full Load Current @ 60 Hz	1.4/2.8 A
Nameplate Voltage @ 60 Hz	460/200-230V AC
