Carling Technologies 3G-OTH-34905 — Technical Specifications

Name: Carling Technologies 3G-OTH-34905 CARLING TECHNOLOGIES Lighted Rocker Switch: 2 Positions, SPST, On/Off, Red (MPN LTILA54-6S-BL-RC-NBL/125N). Key specifications — AC Contact Rating: 15 A @ 125 V; DC Contact Rating: 15 A @ 15 to 28 V; Horsepower: 1/2 hp @125 to 250V AC; NEMA Enclosure Rating: No Enclosure; Operator Illumination: Illuminated; Switch Color: Red; Terminal Connection Type: Screw Terminals; Includes Lamp Module: No Lamp Module Included.
Brand: Carling Technologies

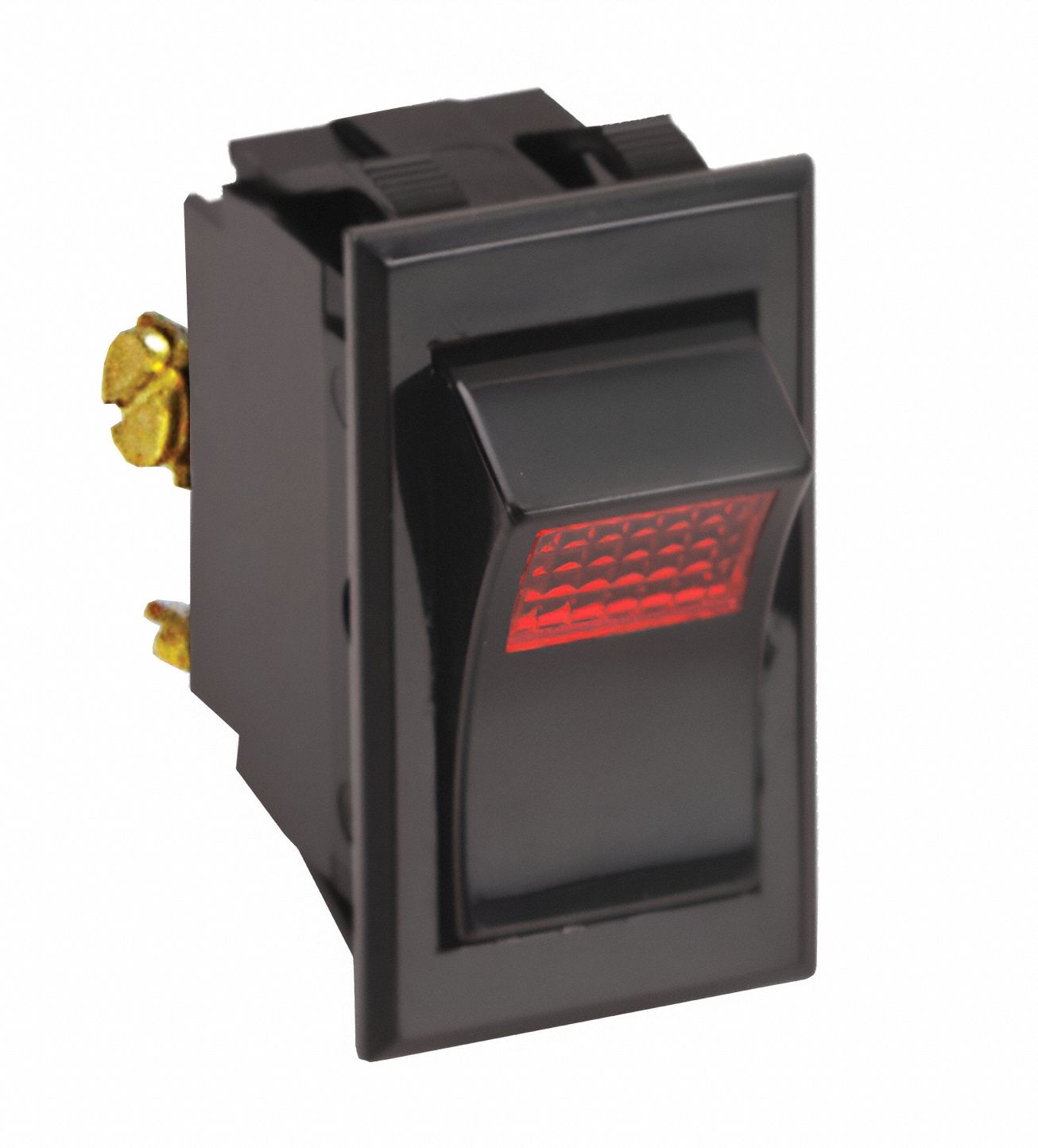

The CARLING TECHNOLOGIES Lighted Rocker Switch (SKU 3XC60, MPN LTILA54-6S-BL-RC-NBL/125N) is a general-purpose rocker switch from the LTIL series. It is a 2-position, SPST, On/Off switch with an illuminated red operator and includes a lens. Key specifications include an AC contact rating of 15 A @ 125 V, a DC contact rating of 15 A @ 15 to 28 V, and a horsepower rating of 1/2 hp @125 to 250V AC, with screw terminals.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CARLING TECHNOLOGIES
Series	LTIL
Horsepower	1/2 hp @125 to 250V AC
Switch Color	Red
Includes Lens	Lens Included
Displayed Brand	CARLING TECHNOLOGIES
AC Contact Rating	15 A @ 125 V
DC Contact Rating	15 A @ 15 to 28 V
Includes Lamp Module	No Lamp Module Included
NEMA Enclosure Rating	No Enclosure
Operator Illumination	Illuminated
Manufacturer Part Number	LTILA54-6S-BL-RC-NBL/125N
Terminal Connection Type	Screw Terminals
