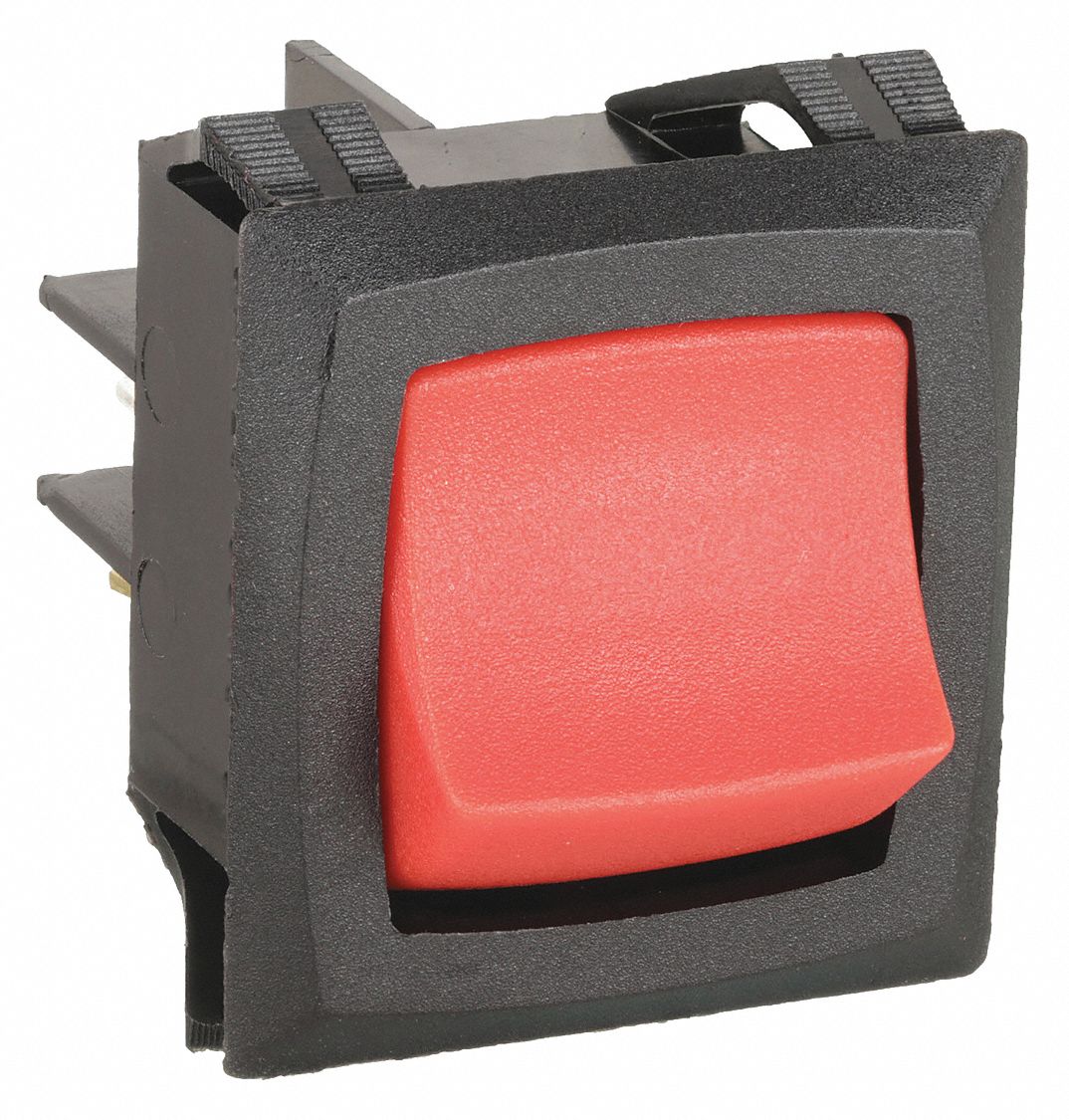

Carling Technologies 3G-OTH-35125 — Technical Specifications

Name: Carling Technologies 3G-OTH-35125 CARLING TECHNOLOGIES Rocker Switch: 2 Positions, DPST, Off/On, Red (MPN LRGSCK611-RS-BO/125N). Key specifications — AC Contact Rating: 15 A @ 250 V; Horsepower: 3/4 hp @125 to 250V AC; NEMA Enclosure Rating: No Enclosure; Operator Illumination: Illuminated; Switch Color: Red; Terminal Connection Type: 0.25 in Quick Connect Tab; Includes Lamp Module: No Lamp Module Included; Includes Lens: No Lens Included.
Brand: Carling Technologies

The CARLING TECHNOLOGIES LRG Series Rocker Switch is a general-purpose DPST switch with two positions (Off/On) and a red illuminated operator. It is rated for 15 A @ 250 V AC and 3/4 hp @125 to 250V AC, with 0.25 in Quick Connect Tab terminals. This switch does not include a lamp module or lens and has no NEMA enclosure rating.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CARLING TECHNOLOGIES
Series	LRG
Horsepower	3/4 hp @125 to 250V AC
Switch Color	Red
Includes Lens	No Lens Included
Displayed Brand	CARLING TECHNOLOGIES
AC Contact Rating	15 A @ 250 V
Includes Lamp Module	No Lamp Module Included
NEMA Enclosure Rating	No Enclosure
Operator Illumination	Illuminated
Manufacturer Part Number	LRGSCK611-RS-BO/125N
Terminal Connection Type	0.25 in Quick Connect Tab
